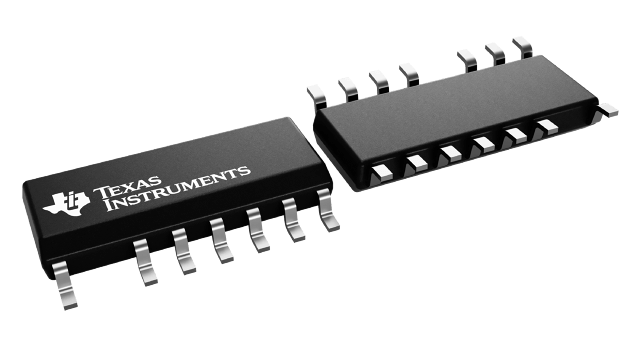

UCC25630-2DDBT Texas Instruments - Yeehing Electronics
LLC resonant controller with high voltage start up enabling low standby power
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.889 |
| 100 — 249 | 2.531 |
| 250 — 999 | 1.775 |
| 1,000 + | 1.00 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Controllers |
| RoHS | Y |
| Topology | Half-Bridge, Resonant |
| Number of Outputs | 1 Output |
| Switching Frequency | 35 kHz to 1 MHz |
| Duty Cycle - Max | 50 % |
| Input Voltage | 15 V |
| Output Voltage | 12 V |
| Output Current | 600 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | SOIC-14 |
| Packaging | Reel |
| Description/Function | LLC resonant controller |
| Operating Temperature Range | - 40 C to + 125 C |
| Product | Resonant Controllers |
| Series | UCC256302 |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Fall Time | 25 ns |
| Moisture Sensitive | Yes |
| Operating Supply Current | 2.2 mA |
| Operating Supply Voltage | 15 V |
| Product Type | Switching Controllers |
| Rise Time | 35 ns |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.005965 oz |
For more information, please refer to datasheet
Documents
| UCC25630-2DDBT Datasheet |
More Information
The UCC256302 is a fully featured LLC controller with integrated high-voltage gate driver. It has been designed for use in offline AC-DC or isolated DC-DC to provide a complete power system using a minimum of external components. The resulting power system is designed to meet the most stringent requirements for standby power without the need for a separate standby power converter.
