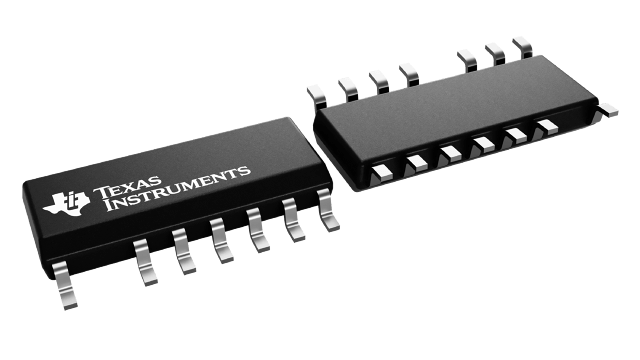

UCC25630-3DDBT Texas Instruments - Yeehing Electronics

LLC resonant controller enabling low standby power

Pricing (USD)

Quantity	Unit Price
1 — 99	2.788
100 — 249	2.443
250 — 999	1.713
1,000 +	0.97

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

UCC25630-3DDBT Datasheet

More Information

The UCC256303 is a fully featured LLC controller with integrated high-voltage gate driver. It has been designed to pair with a PFC stage to provide a complete power system using a minimum of external components. The resulting power system is designed to meet the most stringent requirements for standby power without the need for a separate standby power converter, and with PFC stage running all the time. UCC256303 includes a range of features designed to make LLC converter operation well controlled and robust. This device aims to unburden the LLC designer and allow mainstream applications to benefit from efficiency advantages of the LLC topology.
