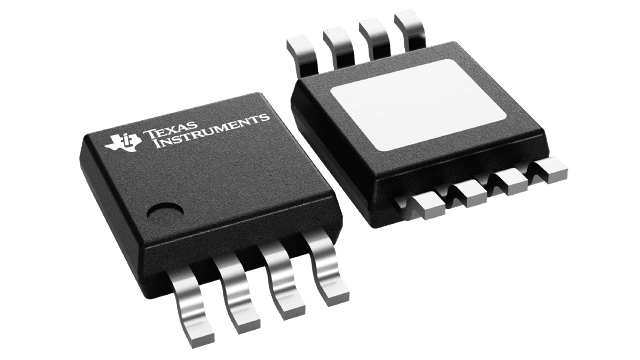

UCC25800AQDGNQ1 Texas Instruments - Yeehing Electronics
Ultra-low EMI transformer driver for isolated bias supplies
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.697 |
| 100 — 249 | 3.014 |
| 250 — 999 | 2.369 |
| 1,000 + | 1.17 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| UCC25800AQDGNQ1 Datasheet |
More Information
The UCC25800-Q1 ultra-low EMI transformer driver integrates the switching power stage, the control, and the protection circuits to simplify isolated bias supply designs. It allows the design to utilize a transformer with higher leakage inductance, but much smaller parasitic primary-to-secondary capacitance. This low-capacitance transformer design enables an order of magnitude reduction in the common-mode current injection through the bias transformer. This makes the transformer driver an ideal solution for the isolated bias supply in various automotive applications to minimize the EMI noise caused by the high-speed switching devices. The soft-switching feature further reduces the EMI noise.
