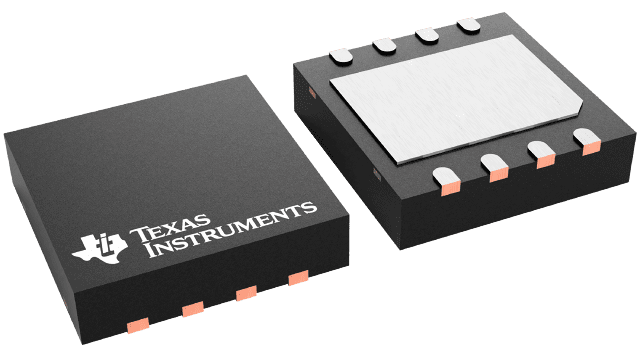

UCC27200DRMR Texas Instruments - Yeehing Electronics
3-A, 120-V half bridge gate driver with 8-V UVLO and CMOS inputs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.792 |
| 100 — 249 | 1.48 |
| 250 — 999 | 1.063 |
| 1,000 + | 0.56 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Gate Drivers |
| RoHS | Y |
| Type | High Side, Low Side |
| Mounting Style | SMD/SMT |
| Package / Case | VSON-8 |
| Number of Drivers | 2 Driver |
| Number of Outputs | 2 Output |
| Output Current | 3 A |
| Rise Time | 8 ns |
| Fall Time | 7 ns |
| Supply Voltage - Min | 8 V |
| Supply Voltage - Max | 20 V |
| Operating Supply Current | 4 mA |
| Pd - Power Dissipation | 3300 mW |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 140 C |
| Series | UCC27200 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 140 C |
| Technology | Si |
| Brand | Texas Instruments |
| Maximum Turn-Off Delay Time | 1 ns |
| Maximum Turn-On Delay Time | 1 ns |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 8 V to 20 V |
| Product Type | Gate Drivers |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.000847 oz |
For more information, please refer to datasheet
Documents
| UCC27200DRMR Datasheet |
More Information
The UCC2720x family of high-frequency N-channel MOSFET drivers include a 120-V bootstrap diode and high-side and low-side drivers with independent inputs for maximum control flexibility. This allows for N-channel MOSFET control in half-bridge, full-bridge, two-switch forward, and active clamp forward converters. The low-side and the high-side gate drivers are independently controlled and matched to 1 ns between the turnon and turnoff of each other.
