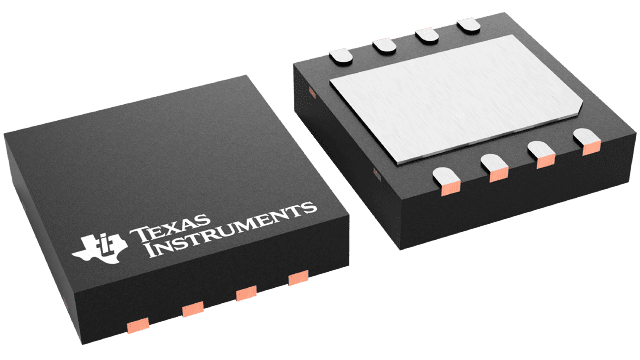

UCC27200DRMT Texas Instruments - Yeehing Electronics

3-A, 120-V half bridge gate driver with 8-V UVLO and CMOS inputs

Pricing (USD)

Quantity	Unit Price
1 — 99	2.15
100 — 249	1.776
250 — 999	1.276
1,000 +	0.67

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

UCC27200DRMT Datasheet

More Information

The UCC2720x family of high-frequency N-channel MOSFET drivers include a 120-V bootstrap diode and high-side and low-side drivers with independent inputs for maximum control flexibility. This allows for N-channel MOSFET control in half-bridge, full-bridge, two-switch forward, and active clamp forward converters. The low-side and the high-side gate drivers are independently controlled and matched to 1 ns between the turnon and turnoff of each other.
