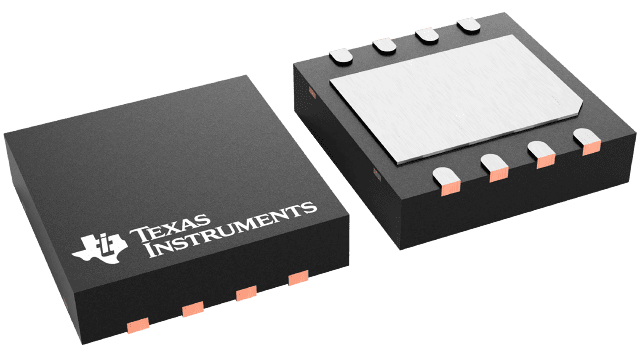

UCC27201ADRMT Texas Instruments - Yeehing Electronics

3-A, 120-V half bridge gate driver with 8-V UVLO and negative voltage handling

Pricing (USD)

Quantity	Unit Price
1 — 99	1.882
100 — 249	1.554
250 — 999	1.116
1,000 +	0.59

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

UCC27201ADRMT Datasheet

More Information

The UCC2720xA family of high-frequency N-channel MOSFET drivers include a 120-V bootstrap diode and high-side/low-side driver with independent inputs for maximum control flexibility. This allows for N-channel MOSFET control in half-bridge, full-bridge, two-switch forward and active clamp forward converters. The low-side and the high-side gate drivers are independently controlled and matched to 1-ns between the turn-on and turn-off of each other. The UCC2720xA are based on the popular UCC27200/1 drivers, but offer some enhancements. In order to improve performance in noisy power supply environments the UCC2720xA has an enhanced ESD input structure and also has the ability to withstand a maximum of –18 V on its HS pin.
