Texas Instruments
UCC27201AQDMKRQ1
UCC27201AQDMKRQ1
Couldn't load pickup availability

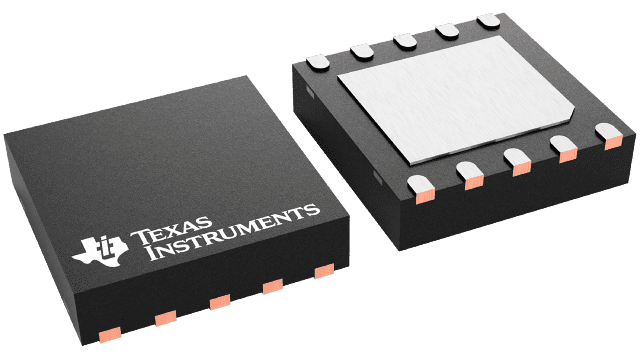

UCC27201AQDMKRQ1 Texas Instruments - Yeehing Electronics
Automotive 3-A, 120-V half bridge gate driver with 8-V UVLO and negative voltage handling
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.343 |
| 100 — 249 | 2.053 |
| 250 — 999 | 1.44 |
| 1,000 + | 0.81 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Gate Drivers |
| RoHS | Y |
| Product | IGBT, MOSFET Gate Drivers |
| Type | High Side, Low Side |
| Mounting Style | SMD/SMT |
| Package / Case | SON-10 |
| Number of Drivers | 2 Driver |
| Number of Outputs | 2 Output |
| Output Current | 3 A |
| Rise Time | 8 ns |
| Fall Time | 7 ns |
| Supply Voltage - Min | 8 V |
| Supply Voltage - Max | 17 V |
| Operating Supply Current | 3.8 mA |
| Pd - Power Dissipation | 2.6 W |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Series | UCC27201A-Q1 |
| Qualification | AEC-Q100 |
| Packaging | Reel |
| Features | Negative Voltage Handling |
| Operating Temperature Range | - 40 C to + 125 C |
| Technology | Si |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Gate Drivers |
| Factory Pack Quantity | 2500 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.001880 oz |
For more information, please refer to datasheet
Documents
| UCC27201AQDMKRQ1 Datasheet |
More Information
The UCC27201A-Q1 high frequency N-Channel MOSFET driver includes a 120-V bootstrap diode and high-side/low-side driver with independent inputs for maximum control flexibility. This allows for N-Channel MOSFET control in half-bridge, full-bridge, two-switch forward and active clamp forward converters. The low-side and the high-side gate drivers are independently controlled and matched to 1-ns between the turn-on and turn-off of each other. The UCC27201A-Q1 is based on the popular UCC27200 and UCC27201 drivers, but offer some enhancements. In order to improve performance in noisy power supply environments the UCC27201A-Q1 has the ability to withstand a maximum of -18 V on its HS pin.
