Description

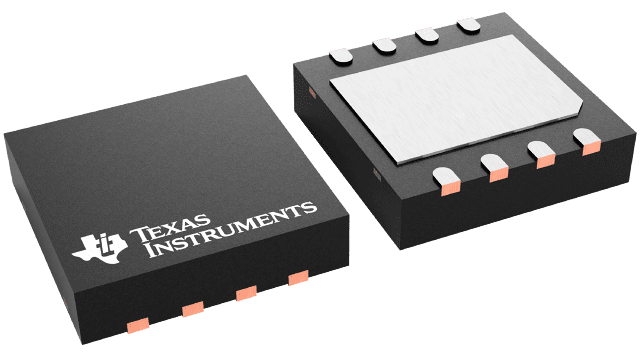

UCC27201DR Texas Instruments - Yeehing Electronics
3-A, 120-V half bridge gate driver with 8-V UVLO and TTL inputs
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.792 |
100 — 249 | 1.48 |
250 — 999 | 1.063 |
1,000 + | 0.56 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
UCC27201DR Datasheet |
More Information
The UCC2720x family of high-frequency N-channel MOSFET drivers include a 120-V bootstrap diode and high-side and low-side drivers with independent inputs for maximum control flexibility. This allows for N-channel MOSFET control in half-bridge, full-bridge, two-switch forward, and active clamp forward converters. The low-side and the high-side gate drivers are independently controlled and matched to 1 ns between the turnon and turnoff of each other.
