UCC27201DRMR


YeeHing #: Y012-UCC27201DRMR
Inventory: 8600

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

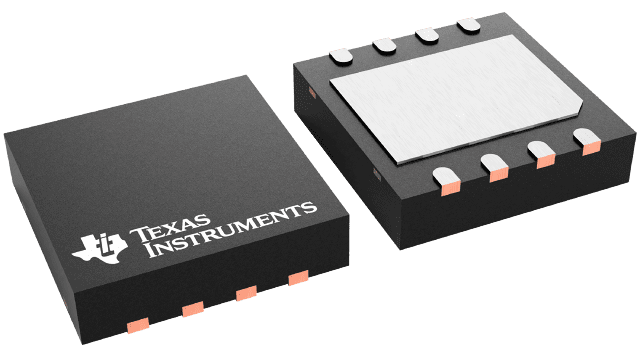

UCC27201DRMR Texas Instruments - Yeehing Electronics

3-A, 120-V half bridge gate driver with 8-V UVLO and TTL inputs

Pricing (USD)

Quantity Unit Price
1 — 99 1.792
100 — 249 1.48
250 — 999 1.063
1,000 + 0.56

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Gate Drivers
RoHS Y
Type High Side, Low Side
Mounting Style SMD/SMT
Package / Case VSON-8
Number of Drivers 2 Driver
Number of Outputs 2 Output
Output Current 3 A
Rise Time 8 ns
Fall Time 7 ns
Supply Voltage - Min 8 V
Supply Voltage - Max 20 V
Operating Supply Current 5.5 mA
Pd - Power Dissipation 3300 mW
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 140 C
Series UCC27201
Packaging Reel
Operating Temperature Range - 40 C to + 140 C
Technology Si
Brand Texas Instruments
Development Kit BQ24610EVM-603
Maximum Turn-Off Delay Time 1 ns
Maximum Turn-On Delay Time 1 ns
Operating Supply Voltage 8 V to 20 V
Product Type Gate Drivers
Factory Pack Quantity 3000
Subcategory PMIC - Power Management ICs
Unit Weight 0.000847 oz

For more information, please refer to datasheet

Documents

UCC27201DRMR Datasheet

More Information

The UCC2720x family of high-frequency N-channel MOSFET drivers include a 120-V bootstrap diode and high-side and low-side drivers with independent inputs for maximum control flexibility. This allows for N-channel MOSFET control in half-bridge, full-bridge, two-switch forward, and active clamp forward converters. The low-side and the high-side gate drivers are independently controlled and matched to 1 ns between the turnon and turnoff of each other.
