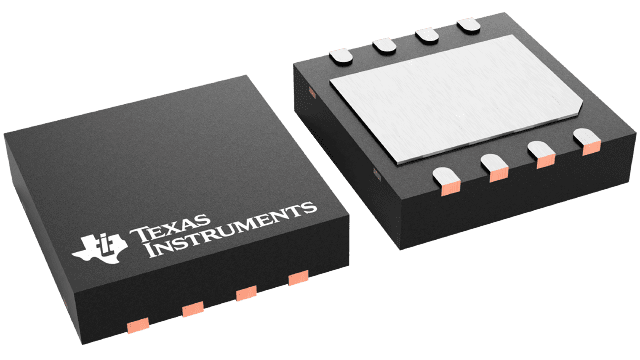

UCC27211ADRMT


YeeHing #: Y012-UCC27211ADRMT
Inventory: 4200

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

UCC27211ADRMT Texas Instruments - Yeehing Electronics

4-A, 120-V half bridge gate driver with 8-V UVLO and negative voltage handling

Pricing (USD)

Quantity Unit Price
1 — 99 2.153
100 — 249 1.778
250 — 999 1.277
1,000 + 0.67

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Gate Drivers
RoHS Y
Product MOSFET Gate Drivers
Type High Side, Low Side
Mounting Style SMD/SMT
Package / Case VSON-8
Number of Drivers 2 Driver
Number of Outputs 1 Output
Output Current 4 A
Configuration Dual
Rise Time 8 ns
Fall Time 7 ns
Supply Voltage - Min 7.8 V
Supply Voltage - Max 20 V
Operating Supply Current 2.6 mA
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 140 C
Series UCC27211A
Packaging Reel
Features Negative Voltage Handling
Operating Temperature Range - 40 C to + 140 C
Technology Si
Brand Texas Instruments
Off Time - Max 17 ns
Maximum Turn-Off Delay Time 17 ns
Maximum Turn-On Delay Time 17 ns
Operating Supply Voltage 7.8 V to 20 V
Product Type Gate Drivers
Factory Pack Quantity 250
Subcategory PMIC - Power Management ICs
Unit Weight 0.000847 oz

For more information, please refer to datasheet

Documents

UCC27211ADRMT Datasheet

More Information

The UCC27211A driver is based on the popular UCC27201 MOSFET drivers; but, this device offers several significant performance improvements. Peak output pullup and pulldown current has been increased to 4-A source and 4-A sink, and pullup and pulldown resistance have been reduced to 0.9 Ω, and thereby allows for driving large power MOSFETs with minimized switching losses during the transition through the Miller Plateau of the MOSFET. The input structure can directly handle –10 VDC, which increases robustness and also allows direct interface to gate-drive transformers without using rectification diodes. The inputs are also independent of supply voltage and have a 20-V maximum rating.
