UCC27211DR


YeeHing #: Y012-UCC27211DR
Inventory: 6600

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

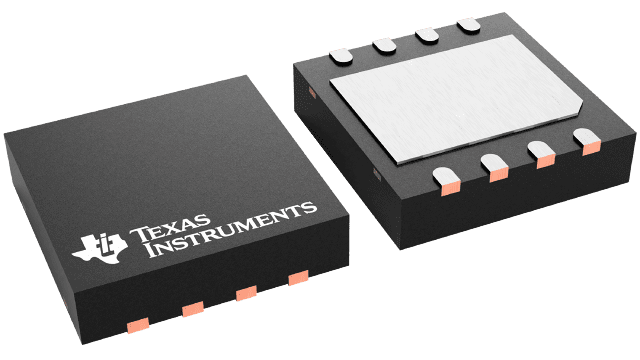

UCC27211DR Texas Instruments - Yeehing Electronics

4-A, 120-V half bridge gate driver with 8-V UVLO and TTL inputs

Pricing (USD)

Quantity Unit Price
1 — 99 1.485
100 — 249 1.227
250 — 999 0.881
1,000 + 0.46

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Gate Drivers
RoHS Y
Product MOSFET Gate Drivers
Type High Side, Low Side
Mounting Style SMD/SMT
Package / Case VSON-8
Output Current 4 A
Configuration Dual
Rise Time 8 ns
Fall Time 7 ns
Supply Voltage - Min 7.8 V
Supply Voltage - Max 20 V
Operating Supply Current 4 A
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 140 C
Series UCC27211
Packaging Reel
Operating Temperature Range - 40 C to + 140 C
Technology Si
Brand Texas Instruments
Operating Supply Voltage 7.8 V to 20 V
Product Type Gate Drivers
Factory Pack Quantity 250
Subcategory PMIC - Power Management ICs
Unit Weight 0.000847 oz

For more information, please refer to datasheet

Documents

UCC27211DR Datasheet

More Information

The UCC27210 and UCC27211 drivers are based on the popular UCC27200 and UCC27201 MOSFET drivers, but offer several significant performance improvements. Peak output pull-up and pull-down current has been increased to 4-A source and 4-A sink, and pull-up and pull-down resistance have been reduced to 0.9 Ω, thereby allowing for driving large power MOSFETs with minimized switching losses during the transition through the Miller Plateau of the MOSFET. The input structure is now able to directly handle –10 VDC, which increases robustness and also allows direct interface to gate-drive transformers without using rectification diodes. The inputs are also independent of supply voltage and have a maximum rating of 20-V.
