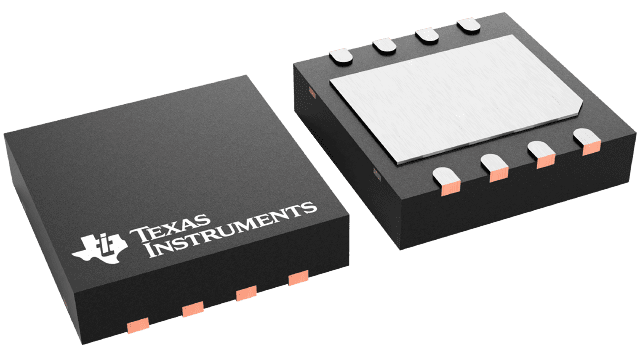

UCC27211DRMR


YeeHing #: Y012-UCC27211DRMR
Inventory: 3600

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

UCC27211DRMR Texas Instruments - Yeehing Electronics

4-A, 120-V half bridge gate driver with 8-V UVLO and TTL inputs

Pricing (USD)

Quantity Unit Price
1 — 99 1.485
100 — 249 1.227
250 — 999 0.881
1,000 + 0.46

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

UCC27211DRMR Datasheet

More Information

The UCC27210 and UCC27211 drivers are based on the popular UCC27200 and UCC27201 MOSFET drivers, but offer several significant performance improvements. Peak output pull-up and pull-down current has been increased to 4-A source and 4-A sink, and pull-up and pull-down resistance have been reduced to 0.9 Ω, thereby allowing for driving large power MOSFETs with minimized switching losses during the transition through the Miller Plateau of the MOSFET. The input structure is now able to directly handle –10 VDC, which increases robustness and also allows direct interface to gate-drive transformers without using rectification diodes. The inputs are also independent of supply voltage and have a maximum rating of 20-V.
