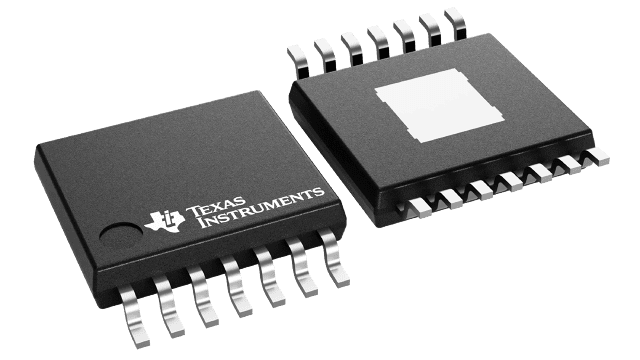

UCC27222PWPR


YeeHing #: Y012-UCC27222PWPR
Inventory: 3000

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

UCC27222PWPR Texas Instruments - Yeehing Electronics

High-Efficiency Predictive synchronous buck driver

Pricing (USD)

Quantity Unit Price
1 — 99 3.27
100 — 249 2.866
250 — 999 2.009
1,000 + 1.13

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Gate Drivers
RoHS Y
Type High Side, Low Side
Mounting Style SMD/SMT
Package / Case HTSSOP-14
Number of Drivers 2 Driver
Number of Outputs 2 Output
Output Current 3 A
Rise Time 17 ns
Fall Time 17 ns
Supply Voltage - Min 3.7 V
Supply Voltage - Max 20 V
Operating Supply Current 100 mA
Pd - Power Dissipation 3000 mW
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 105 C
Series UCC27222
Packaging Reel
Features Dead Time Control, Soft Switching, Synchronous Rectification
Operating Temperature Range - 40 C to + 105 C
Technology Si
Brand Texas Instruments
Logic Type TTL
Moisture Sensitive Yes
Operating Supply Voltage 3.7 V to 20 V
Product Type Gate Drivers
Factory Pack Quantity 2000
Subcategory PMIC - Power Management ICs
Unit Weight 0.002046 oz

For more information, please refer to datasheet

Documents

UCC27222PWPR Datasheet

More Information

The UCC27221 and UCC27222 are high-speed synchronous buck drivers for today’s high-efficiency, lower-output voltage designs. Using Predictive Gate Drive™ (PGD) control technology, these drivers reduce diode conduction and reverse recovery losses in the synchronous rectifier MOSFET(s). The UCC27221 has an inverted PWM input while the UCC27222 has a non-inverting PWM input.
