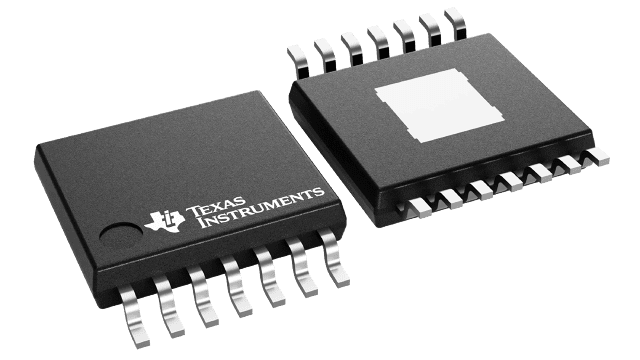

UCC27223PWP


YeeHing #: Y012-UCC27223PWP
Inventory: 2800

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

UCC27223PWP Texas Instruments - Yeehing Electronics

High-Efficiency Predictive synchronous buck driver with dead time control

Pricing (USD)

Quantity Unit Price
1 — 99 3.804
100 — 249 3.333
250 — 999 2.337
1,000 + 1.32

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Gate Drivers
RoHS Y
Type High Side, Low Side
Mounting Style SMD/SMT
Package / Case HTSSOP-14
Number of Drivers 2 Driver
Number of Outputs 2 Output
Output Current 3 A
Rise Time 17 ns
Fall Time 17 ns
Supply Voltage - Min 3.7 V
Supply Voltage - Max 20 V
Operating Supply Current 100 mA
Pd - Power Dissipation 3000 mW
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 105 C
Series UCC27223
Packaging Tube
Features Dead Time Control, Soft Switching, Synchronous Rectification
Operating Temperature Range - 40 C to + 105 C
Technology Si
Brand Texas Instruments
Logic Type TTL
Moisture Sensitive Yes
Operating Supply Voltage 3.7 V to 20 V
Product Type Gate Drivers
Factory Pack Quantity 90
Subcategory PMIC - Power Management ICs
Unit Weight 0.002046 oz

For more information, please refer to datasheet

Documents

UCC27223PWP Datasheet

More Information

The UCC27223 is a high-speed synchronous buck drivers for today’s high-efficiency, lower-output voltage designs. Using Predictive Gate Drive™ (PGD) control technology, these drivers reduce diode conduction and reverse recovery losses in the synchronous rectifier MOSFET(s).
