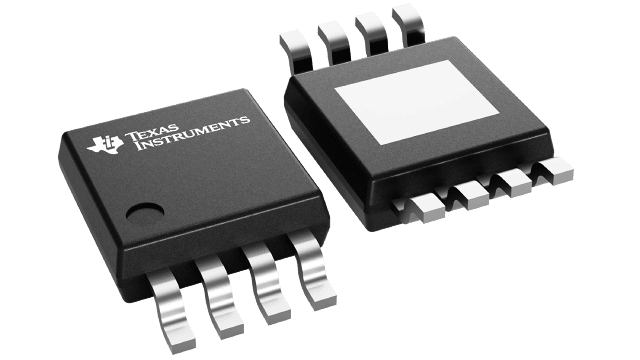

UCC27322QDGNRQ1 Texas Instruments - Yeehing Electronics

Automotive 9-A/9-A single-channel gate driver with noninverting inputs

Pricing (USD)

Quantity	Unit Price
1 — 99	1.163
100 — 249	0.96
250 — 999	0.69
1,000 +	4.11

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Gate Drivers
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	MSOP-PowerPad-8
Output Current	9 A
Rise Time	35 ns
Fall Time	20 ns
Supply Voltage - Min	4 V
Supply Voltage - Max	15 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Series	UCC27322-Q1
Qualification	AEC-Q100
Packaging	Reel
Features	Enable Pin
Operating Temperature Range	- 40 C to + 125 C
Technology	Si
Brand	Texas Instruments
Logic Type	CMOS, TTL
Moisture Sensitive	Yes
Operating Supply Voltage	4 V to 15 V
Product Type	Gate Drivers
Factory Pack Quantity	2500
Subcategory	PMIC - Power Management ICs
Unit Weight	0.000861 oz

For more information, please refer to datasheet

Documents

UCC27322QDGNRQ1 Datasheet

More Information

The UCC2732x-Q1 family of high-speed drivers delivers 9 A of peak drive current in an industry-standard pinout. These drivers can drive large MOSFETs for systems requiring extreme Miller current due to high dV/dt transitions. This eliminates additional external circuits and can replace multiple components to reduce space, design complexity, and assembly cost. Two standard logic options are offered, inverting (UCC27321-Q1) and noninverting (UCC27322-Q1).
