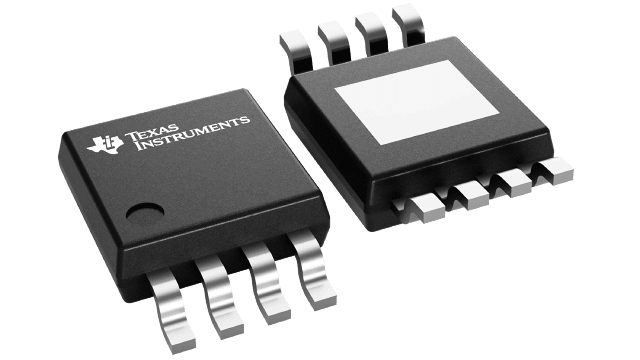

UCC27424QDGNRQ1 Texas Instruments - Yeehing Electronics
Automotive 4-A/4-A dual-channel gate driver with enable
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.186 |
100 — 249 | 0.912 |
250 — 999 | 0.672 |
1,000 + | 0.34 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Gate Drivers |
RoHS | Y |
Product | MOSFET Gate Drivers |
Type | Low Side |
Mounting Style | SMD/SMT |
Package / Case | MSOP-PowerPad-8 |
Number of Drivers | 2 Driver |
Number of Outputs | 2 Output |
Output Current | 4 A |
Rise Time | 20 ns |
Fall Time | 15 ns |
Supply Voltage - Min | 4 V |
Supply Voltage - Max | 15 V |
Operating Supply Current | 10 uA |
Pd - Power Dissipation | 3 W |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Series | UCC27424-Q1 |
Qualification | AEC-Q100 |
Packaging | Reel |
Features | Enable Pin |
Operating Temperature Range | - 40 C to + 125 C |
Technology | Si |
Brand | Texas Instruments |
Logic Type | CMOS |
Shutdown | No |
Maximum Turn-Off Delay Time | 35 ns |
Maximum Turn-On Delay Time | 25 ns |
Moisture Sensitive | Yes |
Operating Supply Voltage | 4 V to 15 V |
Product Type | Gate Drivers |
Factory Pack Quantity | 2500 |
Subcategory | PMIC - Power Management ICs |
Unit Weight | 0.000861 oz |
For more information, please refer to datasheet
Documents
UCC27424QDGNRQ1 Datasheet |
More Information
The UCC2742x-Q1 family of devices are high-speed dual MOSFET drivers capable of delivering large peak currents into capacitive loads. Two standard logic options are offered: dual inverting and dual noninverting drivers. They are offered in the standard 8-pin SOIC (D) package. The thermally enhanced 8-pin PowerPAD Package MSOP package (DGN) drastically lowers the thermal resistance to improve long-term reliability.
