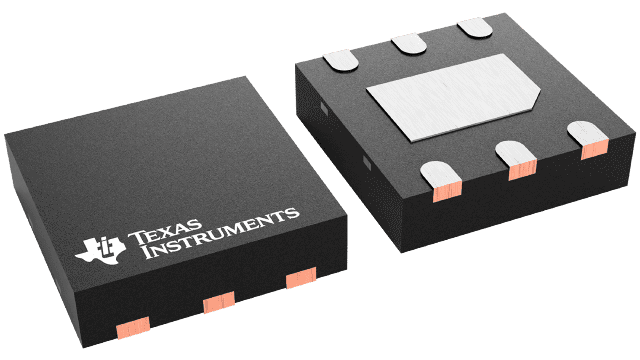

UCC27512DRST


YeeHing #: Y012-UCC27512DRST
Inventory: 3600

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

UCC27512DRST Texas Instruments - Yeehing Electronics

4-A/8-A single-channel gate driver with 5-V UVLO and split outputs in SON package

Pricing (USD)

Quantity Unit Price
1 — 99 1.065
100 — 249 0.819
250 — 999 0.603
1,000 + 0.30

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Gate Drivers
RoHS Y
Product MOSFET Gate Drivers
Type Low Side
Mounting Style SMD/SMT
Package / Case WSON-6
Output Current 8 A
Rise Time 9 ns
Fall Time 7 ns
Supply Voltage - Min 4.5 V
Supply Voltage - Max 18 V
Operating Supply Current 4 A
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 140 C
Series UCC27512
Packaging Reel
Features Hysteretic Logic
Operating Temperature Range - 40 C to + 140 C
Technology Si
Brand Texas Instruments
Logic Type TTL
Moisture Sensitive Yes
Operating Supply Voltage 4.5 V to 18 V
Product Type Gate Drivers
Factory Pack Quantity 250
Subcategory PMIC - Power Management ICs
Unit Weight 0.000342 oz

For more information, please refer to datasheet

Documents

UCC27512DRST Datasheet

More Information

The UCC27511 and UCC27512 single-channel, high-speed, low-side gate-driver device can effectively drive MOSFET and IGBT power switches. Using a design that inherently minimizes shoot-through current, UCC27511 and UCC27512 are capable of sourcing and sinking high peak-current pulses into capacitive loads offering rail-to-rail drive capability and extremely small propagation delay, typically 13 ns.
