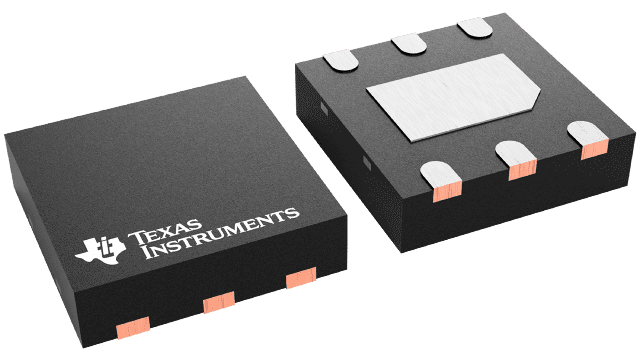

UCC27516DRST Texas Instruments - Yeehing Electronics

4-A/4-A single-channel gate driver with 5-V UVLO and 13-ns prop delay in SON package

Pricing (USD)

Quantity	Unit Price
1 — 99	0.815
100 — 249	0.627
250 — 999	0.462
1,000 +	0.23

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Gate Drivers
RoHS	Y
Product	MOSFET Gate Drivers
Type	Low Side
Mounting Style	SMD/SMT
Package / Case	WSON-6
Output Current	4 A
Rise Time	9 ns
Fall Time	7 ns
Supply Voltage - Min	4.5 V
Supply Voltage - Max	18 V
Operating Supply Current	4 A
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 140 C
Series	UCC27516
Packaging	Reel
Features	Hysteretic Logic
Operating Temperature Range	- 40 C to + 140 C
Technology	Si
Brand	Texas Instruments
Logic Type	TTL
Moisture Sensitive	Yes
Operating Supply Voltage	4.5 V to 18 V
Product Type	Gate Drivers
Factory Pack Quantity	250
Subcategory	PMIC - Power Management ICs
Unit Weight	0.000342 oz

For more information, please refer to datasheet

Documents

UCC27516DRST Datasheet

More Information

The UCC27516 and UCC27517 single-channel, high-speed, low-side gate driver devices can effectively drive MOSFET and IGBT power switches. Using a design that inherently minimizes shoot-through current, UCC27516 and UCC27517 can source and sink high peak-current pulses into capacitive loads offering rail-to-rail drive capability and extremely small propagation delay, typically 13 ns.
