Texas Instruments
UCC27524A1QDGNRQ1
UCC27524A1QDGNRQ1
Couldn't load pickup availability

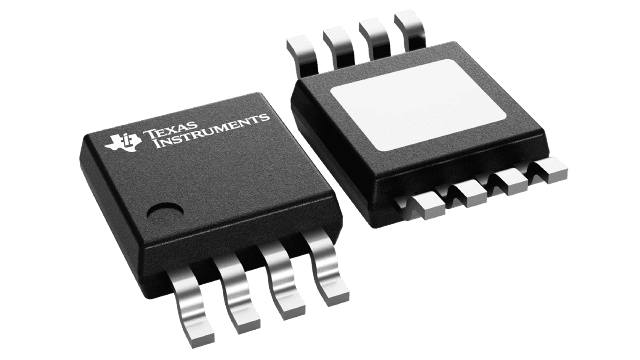

UCC27524A1QDGNRQ1 Texas Instruments - Yeehing Electronics
Automotive 5-A/5-A dual-channel gate driver with 5-V UVLO and negative input voltage handling
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.173 |
| 100 — 249 | 0.903 |
| 250 — 999 | 0.665 |
| 1,000 + | 0.33 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Gate Drivers |
| RoHS | Y |
| Product | IGBT, MOSFET Gate Drivers |
| Type | Low Side |
| Mounting Style | SMD/SMT |
| Package / Case | MSOP-PowerPad-8 |
| Number of Drivers | 2 Driver |
| Number of Outputs | 2 Output |
| Output Current | 5 A |
| Rise Time | 7 ns |
| Fall Time | 6 ns |
| Supply Voltage - Min | 4.5 V |
| Supply Voltage - Max | 18 V |
| Operating Supply Current | 110 uA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 140 C |
| Series | UCC27524A-Q1 |
| Packaging | Reel |
| Features | Enable Pin |
| Operating Temperature Range | - 40 C to + 140 C |
| Technology | Si |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Gate Drivers |
| Factory Pack Quantity | 2500 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.000952 oz |
For more information, please refer to datasheet
Documents
| UCC27524A1QDGNRQ1 Datasheet |
More Information
The UCC27524A1-Q1 device is a dual-channel, high-speed, low-side, gate-driver device capable of effectively driving MOSFET and IGBT power switches. The UCC27524A1-Q1 device is a variant of the UCC2752x family. The UCC27524A1-Q1 device adds the ability to handle –5 V directly at the input pins for increased robustness. The UCC27524A1-Q1 device is a dual, non-inverting driver. Using a design that inherently minimizes shoot-through current, the UCC27524A1-Q1 device is capable of delivering high-peak current pulses of up to 5-A source and 5-A sink into capacitive loads along with rail-to-rail drive capability and extremely small propagation delay (typically 13 ns). In addition, the drivers feature matched, internal-propagation delays between the two channels which are very well suited for applications requiring dual-gate drives with critical timing, such as synchronous rectifiers. This also enables connecting two channels in parallel to effectively increase current-drive capability or driving two switches in parallel with a single input signal. The input pin thresholds are based on TTL and CMOS compatible low-voltage logic, which is fixed and independent of the VDD supply voltage. Wide hysteresis between the high and low thresholds offers excellent noise immunity.
