UCC27524ADGNR


YeeHing #: Y012-UCC27524ADGNR
Inventory: 3400

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

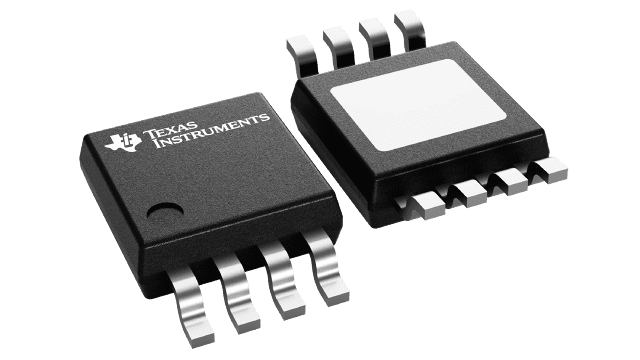

UCC27524ADGNR Texas Instruments - Yeehing Electronics

5-A/5-A dual-channel gate driver with 5-V UVLO, enable, and negative input voltage handling

Pricing (USD)

Quantity Unit Price
1 — 99 0.988
100 — 249 0.76
250 — 999 0.56
1,000 + 1.17

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Gate Drivers
RoHS Y
Product MOSFET Gate Drivers
Type Low Side
Mounting Style SMD/SMT
Package / Case MSOP-PowerPad-8
Number of Drivers 2 Driver
Number of Outputs 2 Output
Output Current 5 A
Configuration Dual
Rise Time 7 ns
Fall Time 7 ns
Supply Voltage - Min 4.5 V
Supply Voltage - Max 18 V
Operating Supply Current 110 uA
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 140 C
Series UCC27524A
Packaging Reel
Features Enable Pin
Operating Temperature Range - 40 C to + 140 C
Technology Si
Brand Texas Instruments
Operating Supply Voltage 4.5 V to 18 V
Product Type Gate Drivers
Factory Pack Quantity 2500
Subcategory PMIC - Power Management ICs
Unit Weight 0.000861 oz

For more information, please refer to datasheet

Documents

UCC27524ADGNR Datasheet

More Information

The UCC27524A device is a dual-channel, high-speed, low-side, gate-driver device capable of effectively driving MOSFET and IGBT power switches. The UCC27524A is a variant of the UCC2752x family. The UCC27524A adds the ability to handle –5 V directly at the input pins for increased robustness. The UCC27524A is a dual non-inverting driver. Using a design that inherently minimizes shoot-through current, the UCC27524A is capable of delivering high-peak current pulses of up to 5-A source and 5-A sink into capacitive loads along with rail-to-rail drive capability and extremely small propagation delay typically 13 ns. In addition, the drivers feature matched internal propagation delays between the two channels which are very well suited for applications requiring dual-gate drives with critical timing, such as synchronous rectifiers. This also enables connecting two channels in parallel to effectively increase current-drive capability or driving two switches in parallel with a single input signal. The input pin thresholds are based on TTL and CMOS compatible low-voltage logic, which is fixed and independent of the VDD supply voltage. Wide hysteresis between the high and low thresholds offers excellent noise immunity.
