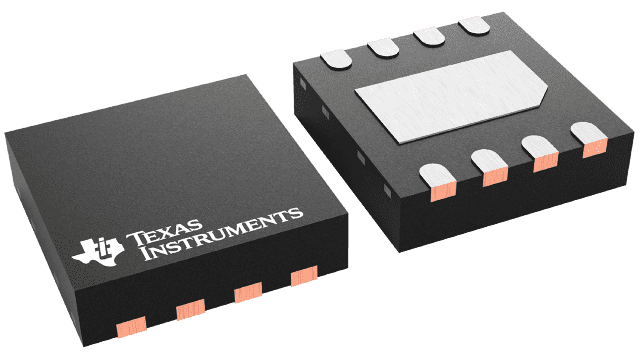

UCC27525DSDR Texas Instruments - Yeehing Electronics

5-A/5-A dual-channel gate driver with 5-V UVLO, enable, and inverting/non-inverting inputs

Pricing (USD)

Quantity	Unit Price
1 — 99	0.939
100 — 249	0.722
250 — 999	0.532
1,000 +	0.27

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Gate Drivers
RoHS	Y
Product	MOSFET Gate Drivers
Type	Low Side
Mounting Style	SMD/SMT
Package / Case	WSON-8
Output Current	5 A
Rise Time	7 ns
Fall Time	7 ns
Supply Voltage - Min	4.5 V
Supply Voltage - Max	18 V
Operating Supply Current	5 A
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 140 C
Series	UCC27525
Packaging	Reel
Features	Enable Pin
Operating Temperature Range	- 40 C to + 140 C
Technology	Si
Brand	Texas Instruments
Moisture Sensitive	Yes
Operating Supply Voltage	4.5 V to 18 V
Product Type	Gate Drivers
Factory Pack Quantity	3000
Subcategory	PMIC - Power Management ICs
Unit Weight	0.000384 oz

For more information, please refer to datasheet

Documents

UCC27525DSDR Datasheet

More Information

The UCC2752x family of devices are dual-channel, high-speed, low-side gate-driver devices capable of effectively driving MOSFET and IGBT power switches. Using a design that inherently minimizes shoot-through current, UCC2752x can deliver high-peak current pulses of up to 5-A source and 5-A sink into capacitive loads along with rail-to-rail drive capability and extremely small propagation delay (typically 13 ns). In addition, the drivers feature matched internal propagation delays between the two channels. These delays are very well suited for applications requiring dual-gate drives with critical timing, such as synchronous rectifiers. This also enables connecting two channels in parallel to effectively increase current-drive capability or driving two switches in parallel with one input signal. The input pin thresholds are based on TTL and CMOS compatible low-voltage logic, which is fixed and independent of the VDD supply voltage. Wide hysteresis between the high and low thresholds offers excellent noise immunity.
