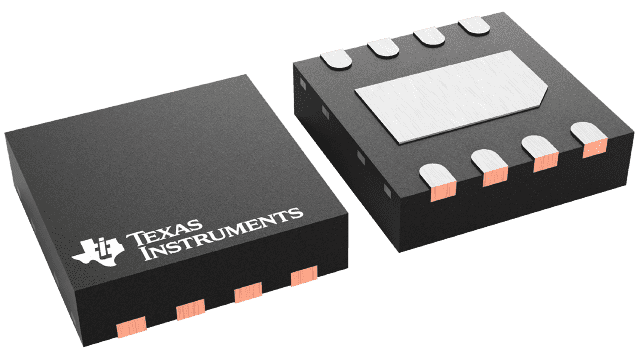

UCC27528DSDR Texas Instruments - Yeehing Electronics

5-A/5-A dual-channel gate driver with 5-V UVLO, CMOS inputs, and enable

Pricing (USD)

Quantity	Unit Price
1 — 99	1.59
100 — 249	1.314
250 — 999	0.944
1,000 +	0.50

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Gate Drivers
RoHS	Y
Product	MOSFET Gate Drivers
Type	Low Side
Mounting Style	SMD/SMT
Package / Case	WSON-8
Number of Drivers	2 Driver
Number of Outputs	2 Output
Output Current	5 A
Configuration	Dual
Rise Time	7 ns
Fall Time	6 ns
Supply Voltage - Min	4.5 V
Supply Voltage - Max	18 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 140 C
Series	UCC27528
Packaging	Reel
Features	Negative Voltage Handling on Input
Operating Temperature Range	- 40 C to + 140 C
Technology	Si
Brand	Texas Instruments
Logic Type	CMOS
Moisture Sensitive	Yes
Operating Supply Voltage	4.5 V to 18 V
Product Type	Gate Drivers
Factory Pack Quantity	3000
Subcategory	PMIC - Power Management ICs
Unit Weight	0.000384 oz

For more information, please refer to datasheet

Documents

UCC27528DSDR Datasheet

More Information

The UCC2752x family of devices are dual-channel, high-speed, low-side gate driver devices capable of effectively driving MOSFET and IGBT power switches. Using a design that inherently minimizes shoot-through current, UCC2752x can deliver high-peak current pulses of up to 5-A source and 5-A sink into capacitive loads along with rail-to-rail drive capability and extremely small propagation delay typically 17 ns. In addition, the drivers feature matched internal propagation delays between the two channels which are very well suited for applications requiring dual-gate drives with critical timing, such as synchronous rectifiers. The input pin thresholds are based on CMOS logic, which is a function of the VDD supply voltage. Wide hysteresis between the high and low thresholds offers excellent noise immunity. The Enable pins are based on TTL and CMOS compatible logic, independent of VDD supply voltage.
