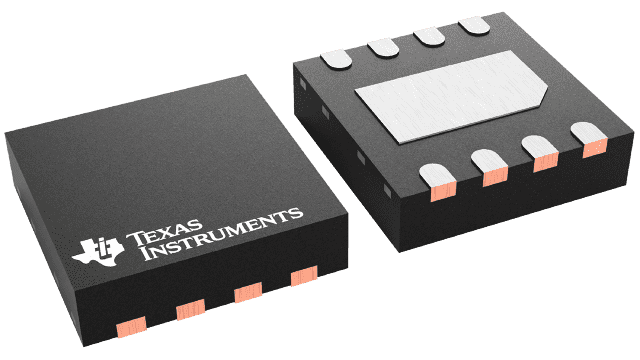

UCC27528DSDT Texas Instruments - Yeehing Electronics
5-A/5-A dual-channel gate driver with 5-V UVLO, CMOS inputs, and enable
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.877 |
| 100 — 249 | 1.55 |
| 250 — 999 | 1.114 |
| 1,000 + | 0.59 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Gate Drivers |
| RoHS | Y |
| Product | MOSFET Gate Drivers |
| Type | Low Side |
| Mounting Style | SMD/SMT |
| Package / Case | WSON-8 |
| Number of Drivers | 2 Driver |
| Number of Outputs | 2 Output |
| Output Current | 5 A |
| Configuration | Dual |
| Rise Time | 7 ns |
| Fall Time | 6 ns |
| Supply Voltage - Min | 4.5 V |
| Supply Voltage - Max | 18 V |
| Operating Supply Current | 125 uA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 140 C |
| Series | UCC27528 |
| Packaging | Reel |
| Features | Negative Voltage Handling on Input |
| Operating Temperature Range | - 40 C to + 140 C |
| Technology | Si |
| Brand | Texas Instruments |
| Logic Type | CMOS |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 4.5 V to 18 V |
| Product Type | Gate Drivers |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.000384 oz |
For more information, please refer to datasheet
Documents
| UCC27528DSDT Datasheet |
More Information
The UCC2752x family of devices are dual-channel, high-speed, low-side gate driver devices capable of effectively driving MOSFET and IGBT power switches. Using a design that inherently minimizes shoot-through current, UCC2752x can deliver high-peak current pulses of up to 5-A source and 5-A sink into capacitive loads along with rail-to-rail drive capability and extremely small propagation delay typically 17 ns. In addition, the drivers feature matched internal propagation delays between the two channels which are very well suited for applications requiring dual-gate drives with critical timing, such as synchronous rectifiers. The input pin thresholds are based on CMOS logic, which is a function of the VDD supply voltage. Wide hysteresis between the high and low thresholds offers excellent noise immunity. The Enable pins are based on TTL and CMOS compatible logic, independent of VDD supply voltage.
