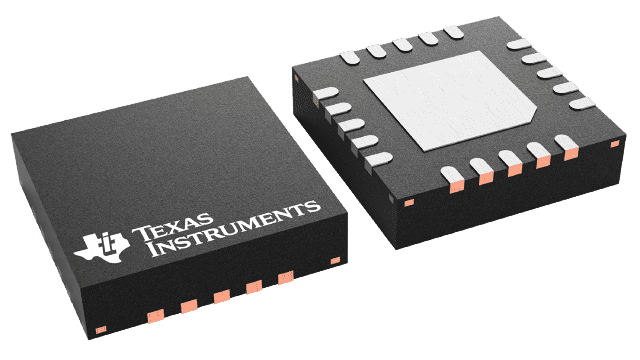

UCC28250RGPR Texas Instruments - Yeehing Electronics
Advanced half-bridge/full-bridge PWM controller with pre-bias operation
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.171 |
| 100 — 249 | 2.779 |
| 250 — 999 | 1.948 |
| 1,000 + | 1.10 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Controllers |
| RoHS | Y |
| Number of Outputs | 4 Output |
| Switching Frequency | 1000 kHz |
| Duty Cycle - Max | 100 % |
| Output Current | 200 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | QFN-20 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Series | UCC28250 |
| Type | Voltage Mode PWM Controllers |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Switching Controllers |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.002469 oz |
For more information, please refer to datasheet
Documents
| UCC28250RGPR Datasheet |
More Information
The UCC28250 PWM controller is designed for high power density applications that may have stringent prebiased start-up requirements. The integrated synchronous rectifier control outputs target high-efficiency and high-performance topologies such as half-bridge, full-bridge, interleaved forward, and push-pull. The UCC27200 half-bridge drivers and UCC2732X MOSFET drivers used in conjunction with the UCC28250 provide a complete power converter solution.
