Texas Instruments
UCC283TDKTTT-5
UCC283TDKTTT-5
Regular price
$2.14 USD
Regular price
Sale price
$2.14 USD
Unit price
per
Couldn't load pickup availability

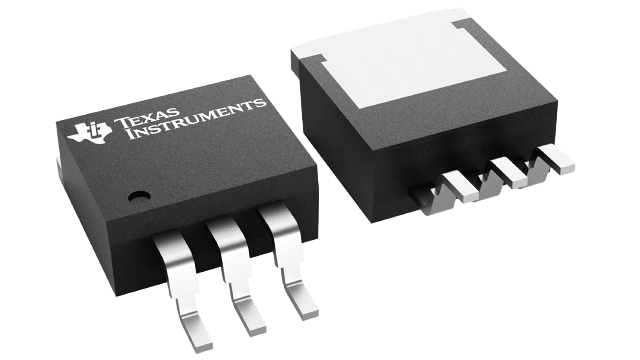

UCC283TDKTTT-5 Texas Instruments - Yeehing Electronics
3-A, 9-V, ultra-low-dropout voltage regulator with reverse current protection from -40°C to +85°C
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 5.629 |
| 100 — 249 | 4.589 |
| 250 — 999 | 3.607 |
| 1,000 + | 2.14 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LDO Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | TO-263-3 |
| Output Voltage | 5 V |
| Output Current | 3 A |
| Number of Outputs | 1 Output |
| Polarity | Positive |
| Quiescent Current | 650 uA |
| Input Voltage MAX | 9 V |
| Input Voltage MIN | 5.45 V |
| Output Type | Fixed |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Dropout Voltage | 400 mV |
| Series | UCC283-5 |
| Packaging | Reel |
| Height | 4.44 mm |
| Length | 10.18 mm |
| Operating Temperature Range | - 40 C to + 85 C |
| Width | 8.41 mm |
| Brand | Texas Instruments |
| Dropout Voltage - Max | 600 mV |
| Ib - Input Bias Current | 400 uA |
| Line Regulation | 10 mV |
| Load Regulation | 20 mV |
| Moisture Sensitive | Yes |
| Product Type | LDO Voltage Regulators |
| Factory Pack Quantity | 50 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.068654 oz |
For more information, please refer to datasheet
Documents
| UCC283TDKTTT-5 Datasheet |
More Information
The UCC2833/5/ADJ family of positive linear series pass voltage regulators are tailored for low-drop-out applications where low quiescent power is important. Fabricated with a BiCMOS technology ideally suited for low input-to-output differential applications, the UCC2835 passes 3 A while requiring only 0.45 V of typical input voltage headroom (ensured 0.6-V dropout).
