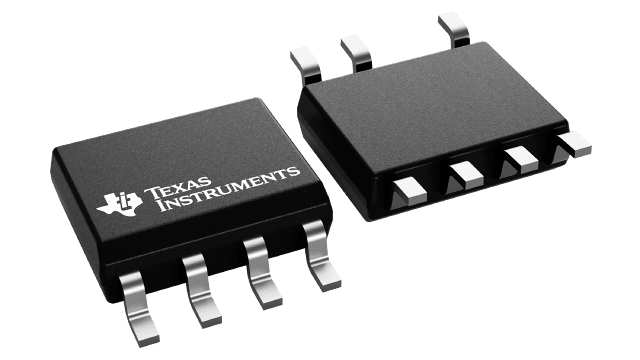

UCC28633D Texas Instruments - Yeehing Electronics

High power Flyback controller with PSR, peak power mode, X-Cap discharge, Adj CC limit, freq dither

Pricing (USD)

Quantity	Unit Price
1 — 99	1.774
100 — 249	1.465
250 — 999	1.053
1,000 +	0.55

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	AC/DC Converters
RoHS	Y
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Series	UCC28633
Packaging	Reel
Operating Temperature Range	- 40 C to + 125 C
Brand	Texas Instruments
Moisture Sensitive	Yes
Product Type	AC/DC Converters
Factory Pack Quantity	2500
Subcategory	PMIC - Power Management ICs

For more information, please refer to datasheet

Documents

UCC28633D Datasheet

More Information

The UCC2863x targets high-power, primary-side regulated flyback converters. The ability to operate in both CCM and DCM make the device suitable for applications with a wide power range. The peak power mode allows transient peak power delivery up to 200% of nominal rating, with only a 25% peak current increase, maximizing transformer utilization.
