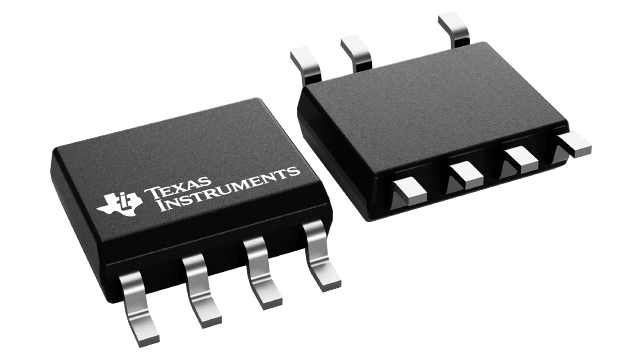

UCC28711D Texas Instruments - Yeehing Electronics

Constant-voltage, constant-current PWM with PSR, valley switching, NTC option, and 0-mV cable comp.

Pricing (USD)

Quantity	Unit Price
1 — 99	1.245
100 — 249	1.029
250 — 999	0.739
1,000 +	0.44

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	AC/DC Converters
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	SOIC-7
Output Voltage	14 V
Input / Supply Voltage - Min	9 V
Input / Supply Voltage - Max	35 V
Topology	Flyback
Switching Frequency	600 Hz to 106 kHz
Duty Cycle - Max	42.5 %
Operating Supply Current	2 mA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Output Current	25 mA
Series	UCC28711
Packaging	Reel
Isolation	Isolated
Number of Outputs	1 Output
Operating Temperature Range	- 40 C to + 125 C
Type	Flyback Controller
Brand	Texas Instruments
Product Type	AC/DC Converters
Factory Pack Quantity	2500
Subcategory	PMIC - Power Management ICs
Unit Weight	0.008960 oz

For more information, please refer to datasheet

Documents

UCC28711D Datasheet

More Information

The UCC2871x family of flyback power supply controllers provides isolated-output Constant-Voltage (CV) and Constant-Current (CC) output regulation without the use of an optical coupler. The devices process information from the primary power switch and an auxiliary flyback winding for precise control of output voltage and current.
