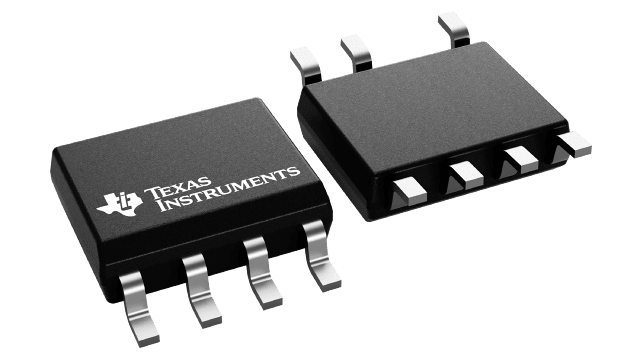

UCC28730D Texas Instruments - Yeehing Electronics
Zero standby PSR flyback controller with CVCC and wake-up monitoring
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.373 |
100 — 249 | 1.056 |
250 — 999 | 0.778 |
1,000 + | 0.39 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | AC/DC Converters |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | SOIC-7 |
Output Voltage | 14 V |
Input / Supply Voltage - Min | 9 V |
Input / Supply Voltage - Max | 35 V |
Topology | Flyback |
Switching Frequency | 83 kHz |
Duty Cycle - Max | 99 % |
Operating Supply Current | 2.1 mA |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Output Current | 29 mA |
Series | UCC28730 |
Packaging | Reel |
Isolation | Isolated |
Number of Outputs | 1 Output |
Operating Temperature Range | - 40 C to + 125 C |
Product | Power Switches |
Type | CV/CC Switcher |
Brand | Texas Instruments |
Product Type | AC/DC Converters |
Factory Pack Quantity | 2500 |
Subcategory | PMIC - Power Management ICs |
Unit Weight | 0.008960 oz |
For more information, please refer to datasheet
Documents
UCC28730D Datasheet |
More Information
The UCC28730 isolated-flyback power supply controller provides Constant-Voltage (CV) and Constant-Current (CC) output regulation without the use of an optical coupler, and wake-up signal detection to improve transient response to large load steps. A minimum switching frequency of 30 Hz facilitates achieving less than 5 mW of no-load power. This device processes information from the primary power switch and an auxiliary flyback winding for precise control of output voltage and current. The wake-up monitoring works with a secondary-side alarm device such as the UCC24650 to deliver rapid response to heavy load steps using minimal output capacitance.
