Texas Instruments
UCC28730QDRQ1
UCC28730QDRQ1
Regular price
$0.37 USD
Regular price
Sale price
$0.37 USD
Unit price
per
Couldn't load pickup availability

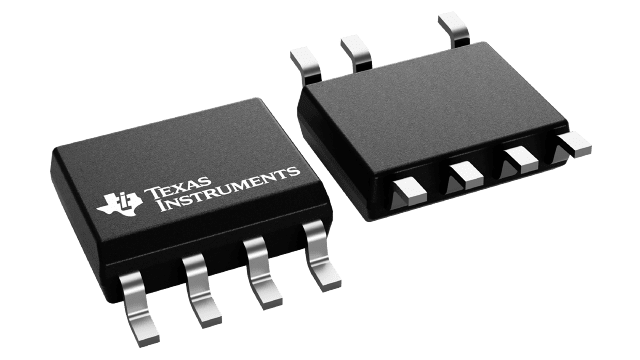

UCC28730QDRQ1 Texas Instruments - Yeehing Electronics
Zero-power standby PSR flyback controller for automotive
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.309 |
| 100 — 249 | 1.007 |
| 250 — 999 | 0.741 |
| 1,000 + | 0.37 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | AC/DC Converters |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | SOIC-7 |
| Output Voltage | 14.5 V |
| Input / Supply Voltage - Min | 9 V |
| Input / Supply Voltage - Max | 35 V |
| Topology | Flyback |
| Switching Frequency | 83 kHz |
| Duty Cycle - Max | 99 % |
| Operating Supply Current | 2.1 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Output Current | 29 mA |
| Series | UCC28730-Q1 |
| Packaging | Reel |
| Isolation | Isolated |
| Number of Outputs | 1 Output |
| Operating Temperature Range | - 40 C to + 125 C |
| Product | AC/DC Converters |
| Type | Flyback Controller |
| Brand | Texas Instruments |
| Development Kit | UCC28730EVM-552 |
| Moisture Sensitive | Yes |
| Product Type | AC/DC Converters |
| Factory Pack Quantity | 2500 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.019048 oz |
For more information, please refer to datasheet
Documents
| UCC28730QDRQ1 Datasheet |
More Information
The UCC28730-Q1 isolated-flyback power supply controller provides constant-voltage (CV) and constant-current (CC) output regulation without the use of an optical coupler. A minimum switching frequency of 30 Hz achieves less than 5 mW of no-load power.
