Texas Instruments
UCC28740DR
UCC28740DR
Regular price
$0.26 USD
Regular price
Sale price
$0.26 USD
Unit price
per
Couldn't load pickup availability

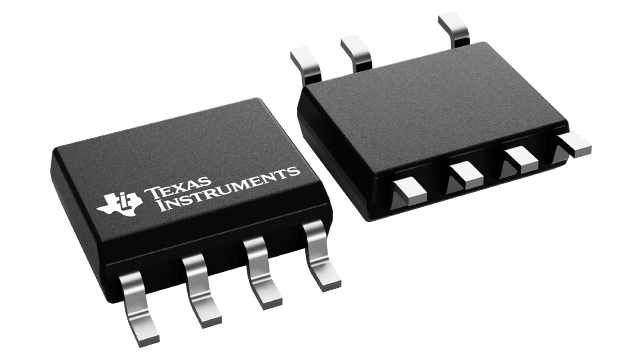

UCC28740DR Texas Instruments - Yeehing Electronics
Constant-Voltage, Constant-Current (CVCC) Flyback controller with Secondary Side Regulation (SSR)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.931 |
| 100 — 249 | 0.716 |
| 250 — 999 | 0.527 |
| 1,000 + | 0.26 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Controllers |
| RoHS | Y |
| Topology | Flyback |
| Switching Frequency | 0.17 kHz to 100 kHz |
| Duty Cycle - Max | 99 % |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | SOIC-7 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Series | UCC28740 |
| Type | Current Mode PWM Controllers |
| Brand | Texas Instruments |
| Operating Supply Voltage | 8.1 V to 35 V |
| Product Type | Switching Controllers |
| Factory Pack Quantity | 2500 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.008960 oz |
For more information, please refer to datasheet
Documents
| UCC28740DR Datasheet |
More Information
The UCC28740 isolated-flyback power-supply controller provides Constant-Voltage (CV) using an optical coupler to improve transient response to large-load steps. Constant-Current (CC) regulation is accomplished through Primary-Side Regulation (PSR) techniques. This device processes information from opto-coupled feedback and an auxiliary flyback winding for precise high-performance control of output voltage and current.
