Texas Instruments
UCC2897ARGPR
UCC2897ARGPR
Regular price
$1.37 USD
Regular price
Sale price
$1.37 USD
Unit price
per
Couldn't load pickup availability

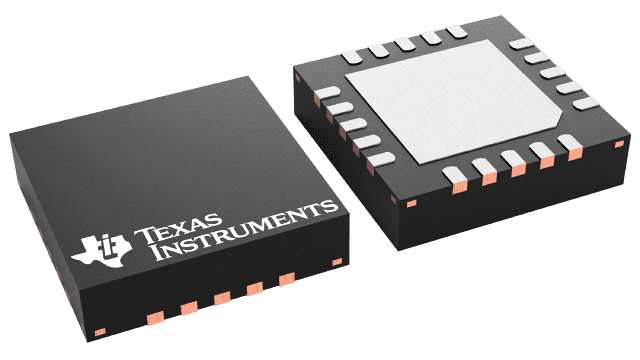

UCC2897ARGPR Texas Instruments - Yeehing Electronics
110-V active clamp current mode PWM controller with P-channel clamp FET and line OV protection
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.295 |
| 100 — 249 | 1.069 |
| 250 — 999 | 0.768 |
| 1,000 + | 1.37 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Controllers |
| RoHS | Y |
| Topology | Flyback, Forward |
| Number of Outputs | 1 Output |
| Switching Frequency | 1000 kHz |
| Duty Cycle - Max | 74 % |
| Output Current | 2 A |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | QFN-20 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Series | UCC2897A |
| Type | Current Mode PWM Controllers |
| Brand | Texas Instruments |
| Development Kit | UCC2897AEVM |
| Fall Time | 14 ns |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 12 V |
| Product Type | Switching Controllers |
| Rise Time | 19 ns |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.002469 oz |
For more information, please refer to datasheet
Documents
| UCC2897ARGPR Datasheet |
More Information
The UCC2897A PWM controller simplifies implementation of the various active clamp or reset and synchronous rectifier switching power topologies.
