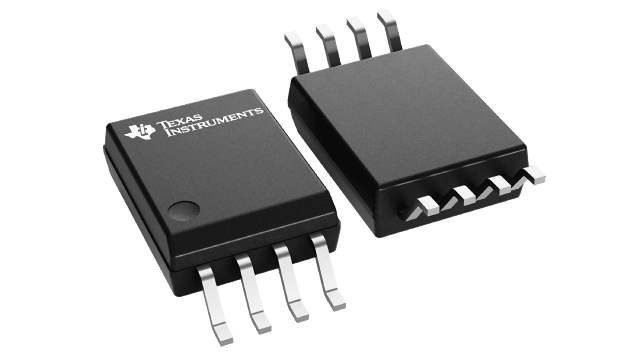

UCC5310MCDWV Texas Instruments - Yeehing Electronics

3kVrms/5kVrms, 2A/1A single-channel isolated gate driver with miller clamp, 12V UVLO & D or DWV pkg

Pricing (USD)

Quantity	Unit Price
1 — 99	1.837
100 — 249	1.517
250 — 999	1.09
1,000 +	0.57

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

UCC5310MCDWV Datasheet

More Information

The UCC53x0 is a family of single-channel, isolated gate drivers designed to drive MOSFETs, IGBTs, SiC MOSFETs, and GaN FETs (UCC5350SBD). The UCC53x0S provides a split output that controls the rise and fall times individually. The UCC53x0M connects the gate of the transistor to an internal clamp to prevent false turnon caused by Miller current. The UCC53x0E has its UVLO2 referenced to GND2 to get a true UVLO reading.
