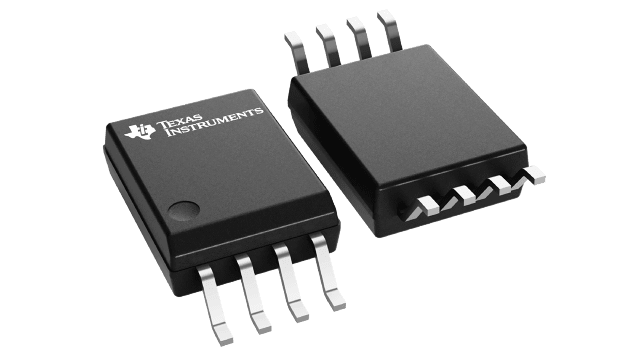

UCC5350MCQDWVRQ1 Texas Instruments - Yeehing Electronics

Automotive, 3/5kVrms ±5A single-channel isolated gate driver with miller clamp for IGBT/SiC FETs

Pricing (USD)

Quantity	Unit Price
1 — 99	2.091
100 — 249	1.832
250 — 999	1.284
1,000 +	0.72

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

UCC5350MCQDWVRQ1 Datasheet

More Information

The UCC5350-Q1 is a single-channel, isolated gate driver with 5-A source and 5-A sink minimum peak current designed to drive MOSFETs, IGBTs, and SiC MOSFETs. The UCC5350-Q1 has the option for Miller clamp or Split Outputs. The CLAMP pin is used to connect the transistor gate to an internal FET besides the output to prevent false turn-on caused by Miller current. The split outputs option allows separate control of the rise and fall times of the gate voltage with OUTH and OUTL pins.
