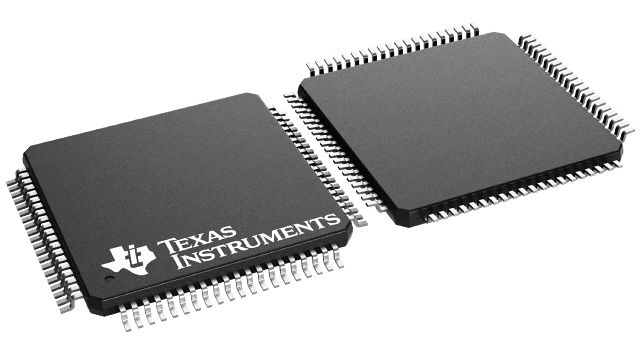

UCD3138128APFCR Texas Instruments - Yeehing Electronics

Highly-Integrated Digital Controller For Isolated Power

Pricing (USD)

Quantity	Unit Price
1 — 99	17.978
100 — 249	15.704
250 — 999	12.108
1,000 +	7.58

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

UCD3138128APFCR Datasheet

More Information

The UCD3138xA is a digital power supply controller from Texas Instruments offering superior levels of integration and performance in a single chip solution. The UCD3138128A offers 128 kB of program flash memory in comparison to 32 kB in UCD3138A. and it also provides additional options for communication such as SPI and a second I2C/PMBus port. The availability of of program Flash memory in multiple 32 kB banks enables designers to implement dual images of firmware (that is, one main image + one back-up image) in the device and provides the option to execute from either of the banks using appropriate algorithms. It also creates the unique opportunity for the processor to load a new program and subsequently execute that program without interrupting power delivery. This feature allows the end user to add new features to the power supply in the field while eliminating any down-time required to load the new program.
