Texas Instruments
UCD3138ARJAT
UCD3138ARJAT
Regular price
$4.81 USD
Regular price
Sale price
$4.81 USD
Unit price
per
Couldn't load pickup availability

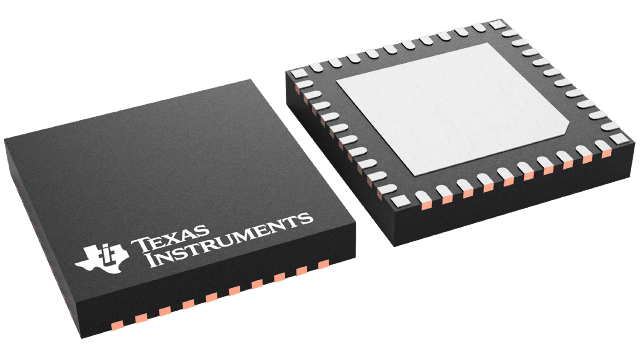

UCD3138ARJAT Texas Instruments - Yeehing Electronics
UCD3138A Highly Integrated Digital Controller for Isolated Power
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 11.417 |
| 100 — 249 | 9.973 |
| 250 — 999 | 7.69 |
| 1,000 + | 4.81 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Power Management Specialized - PMIC |
| RoHS | Y |
| Output Current | 30 A |
| Input Voltage Range | 3 V to 3.6 V |
| Input Current | 105 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-40 |
| Type | Digital Controller |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Product | Voltage Controllers |
| Series | UCD3138A |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Current | 105 mA |
| Operating Supply Voltage | 3.3 V |
| Product Type | Power Management Specialized - PMIC |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.003104 oz |
For more information, please refer to datasheet
Documents
| UCD3138ARJAT Datasheet |
More Information
The UCD3138A is a digital power supply controller from Texas Instruments offering superior levels of integration and performance in a single-chip solution. The flexible nature of the UCD3138A makes it suitable for a wide variety of power conversion applications. In addition, multiple peripherals inside the device have been specifically optimized to enhance the performance of AC-DC and isolated DC-DC applications and reduce the solution component count in the IT and network infrastructure space.
