UCD3138RJAT Texas Instruments - Yeehing Electronics

Highly Integrated Digital Controller for Isolated Power with 3 Feedback Loops and 8 DPWM Outputs

Pricing (USD)

Quantity	Unit Price
1 — 99	12.512
100 — 249	10.2
250 — 999	8.017
1,000 +	4.76

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Power Management Specialized - PMIC
RoHS	Y
Output Voltage Range	11.4 V to 12.6 V
Output Current	30 A
Input Voltage Range	3 V to 3.6 V
Input Current	60 mA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT

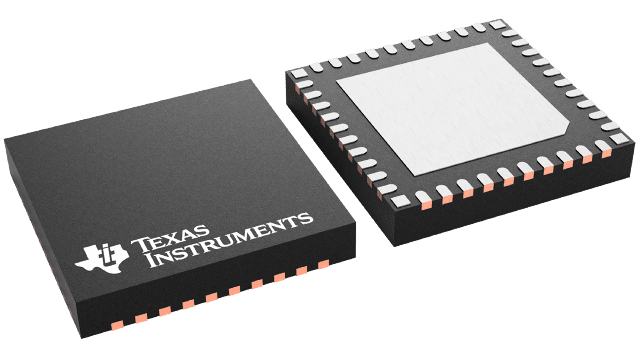

Package / Case	VQFN-40
Type	Digital Controller
Packaging	Reel
Operating Temperature Range	- 40 C to + 125 C
Product	Voltage Controllers
Series	UCD3138
Brand	Texas Instruments
Moisture Sensitive	Yes
Operating Supply Current	60 mA
Operating Supply Voltage	3.3 V
Product Type	Power Management Specialized - PMIC
Factory Pack Quantity	250
Subcategory	PMIC - Power Management ICs
Unit Weight	0.003104 oz

For more information, please refer to datasheet

Documents

UCD3138RJAT Datasheet

More Information

The UCD3138 is a digital power supply controller offering superior levels of integration and performance in a single-chip solution. The flexible nature of the UCD3138 makes it suitable for a wide variety of power conversion applications. In addition, multiple peripherals inside the device have been specifically optimized to enhance the performance of AC-DC and isolated DC-DC applications and reduce the solution component count in the IT and network infrastructure space.
