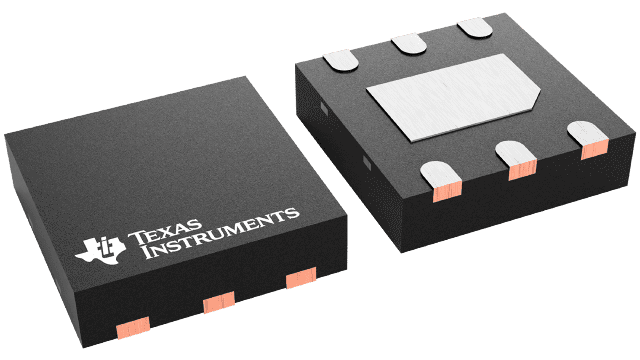

UCD7138DRST Texas Instruments - Yeehing Electronics
Low-side Power MOSFET Driver With Body Diode conduction Sensing
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.951 |
100 — 249 | 1.611 |
250 — 999 | 1.158 |
1,000 + | 0.61 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Gate Drivers |
RoHS | Y |
Product | MOSFET Gate Drivers |
Type | Low Side |
Mounting Style | SMD/SMT |
Package / Case | WSON-6 |
Number of Drivers | 1 Driver |
Number of Outputs | 1 Output |
Rise Time | 4 ns |
Fall Time | 3.5 ns |
Supply Voltage - Min | 4.5 V |
Supply Voltage - Max | 18 V |
Operating Supply Current | 13 mA |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Series | UCD7138 |
Packaging | Reel |
Operating Temperature Range | - 40 C to + 125 C |
Technology | Si |
Brand | Texas Instruments |
Shutdown | No Shutdown |
Maximum Turn-Off Delay Time | 22.9 ns |
Maximum Turn-On Delay Time | 26.6 ns |
Moisture Sensitive | Yes |
Product Type | Gate Drivers |
Factory Pack Quantity | 250 |
Subcategory | PMIC - Power Management ICs |
Unit Weight | 0.000342 oz |
For more information, please refer to datasheet
Documents
UCD7138DRST Datasheet |
More Information
The UCD7138 device is a 4-A and 6-A single-channel MOSFET driver with body-diode conduction sensing and reporting and is a high performance driver that allows the Texas Instruments UCD3138A digital PWM controller to achieve advanced synchronous-rectification (SR) control. The device contains a high-speed gate driver, a body-diode conduction-sensing circuit, and a turnon delay optimization circuit. The device is suitable for high-power, high-efficiency isolated converter applications where SR dead-time optimization is desired.
