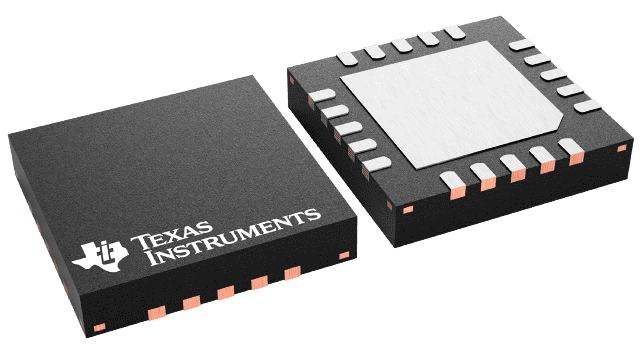

UCD7231RTJT Texas Instruments - Yeehing Electronics
Digital Control Compatible Synchronous Buck Gate Driver with Current Sense and Fault Protection
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.597 |
| 100 — 249 | 1.319 |
| 250 — 999 | 0.948 |
| 1,000 + | 0.50 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Gate Drivers |
| RoHS | Y |
| Product | Driver ICs - Various |
| Mounting Style | SMD/SMT |
| Package / Case | QFN-20 |
| Rise Time | 30 ns |
| Fall Time | 20 ns |
| Supply Voltage - Min | 4.7 V |
| Supply Voltage - Max | 15 V |
| Operating Supply Current | 8 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Series | UCD7231 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Technology | Si |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Gate Drivers |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.001344 oz |
For more information, please refer to datasheet
Documents
| UCD7231RTJT Datasheet |
More Information
The UCD7231 high current driver is specifically designed for digitally-controlled, point-of-load, synchronous buck switching power supplies. Two driver circuits provide high charge and discharge current for the high-side NMOS switch and the low-side NMOS synchronous rectifier in a synchronous buck circuit. The MOSFET gates are driven to +6 V by an internally regulated VGG supply. The internal VGG regulator can be disabled to permit the user to supply their own gate drive voltage. This flexibility allows a wide power conversion input voltage range of 2.2 to 15 V. Internal under voltage lockout (UVLO) logic insures VGG is good before allowing chip operation.
