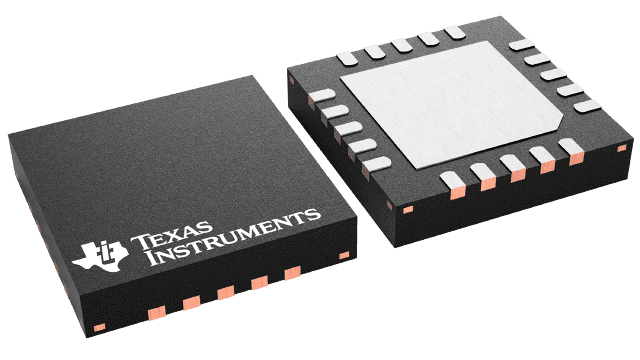

Digital Control Compatible Synchronous-Buck Gate Driver with Current Sense and Fault Protection
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.183 |
100 — 249 | 0.977 |
250 — 999 | 0.702 |
1,000 + | 0.37 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Gate Drivers |
RoHS | Y |
Product | MOSFET Gate Drivers |
Type | High Side, Low Side |
Mounting Style | SMD/SMT |
Package / Case | QFN-20 |
Number of Drivers | 1 Driver |
Number of Outputs | 1 Output |
Output Current | 6 A |
Configuration | Dual |
Rise Time | 30 ns |
Fall Time | 20 ns |
Supply Voltage - Min | 4.7 V |
Supply Voltage - Max | 15 V |
Operating Supply Current | 10 mA |
Pd - Power Dissipation | 183 mW |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Series | UCD7232 |
Packaging | Reel |
Operating Temperature Range | - 40 C to + 125 C |
Output Voltage | 500 mV |
Technology | Si |
Brand | Texas Instruments |
Logic Type | CMOS, TTL |
Moisture Sensitive | Yes |
Operating Supply Voltage | 4.7 V to 15 V |
Product Type | Gate Drivers |
Factory Pack Quantity | 3000 |
Subcategory | PMIC - Power Management ICs |
Unit Weight | 0.001344 oz |
For more information, please refer to datasheet
Documents
UCD7232RTJR Datasheet |
More Information
The UCD7232 high current driver is specifically designed for digitally-controlled, point-of-load, synchronous buck switching power supplies. Two driver circuits provide high charge and discharge current for the high-side NMOS switch and the low-side NMOS synchronous rectifier in a synchronous buck circuit. The MOSFET gates are driven by an internally regulated VGG supply. The internal VGG regulator can be disabled to permit the user to supply their own gate drive voltage. This flexibility allows a wide power conversion input voltage range of 2.2 to 15 V. Internal under voltage lockout (UVLO) logic insures VGG is good before allowing chip operation.
