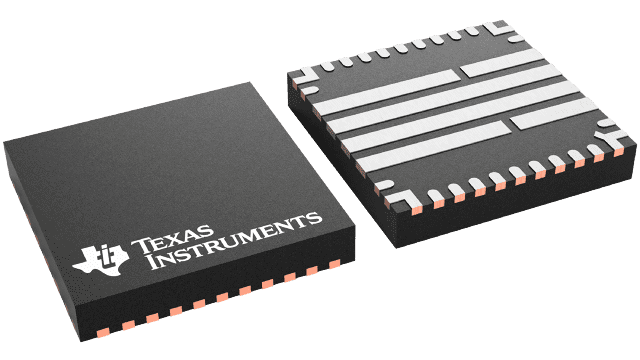

UCD7242RSJR Texas Instruments - Yeehing Electronics

Digital Dual Synchronous Buck Power Driver

Pricing (USD)

Quantity	Unit Price
1 — 99	4.291
100 — 249	3.498
250 — 999	2.749
1,000 +	1.44

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Gate Drivers
RoHS	Y
Package / Case	VQFN-32
Number of Drivers	2 Driver
Number of Outputs	2 Output
Output Current	10 A
Supply Voltage - Min	2.2 V
Supply Voltage - Max	18 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Series	UCD7242
Packaging	Reel
Operating Temperature Range	- 40 C to + 125 C
Technology	Si
Brand	Texas Instruments
Development Kit	UCD9224EVM-464
Operating Supply Voltage	2.2 V to 18 V
Product Type	Gate Drivers
Factory Pack Quantity	2500
Subcategory	PMIC - Power Management ICs
Part # Aliases	HPA00846RSJR
Unit Weight	0.002547 oz

For more information, please refer to datasheet

Documents

UCD7242RSJR Datasheet

More Information

The UCD7242 is a complete power system ready to drive two independent buck power supplies. High side MOSFETs, low side MOSFETs, drivers, current sensing circuitry and necessary protection functions are all integrated into one monolithic solution to facilitate minimum size and maximum efficiency. Driver circuits provide high charge and discharge current for the high-side NMOS switch and the low-side NMOS synchronous rectifier in a synchronous buck circuit. The MOSFET gates are driven to +6.25 V by an internally regulated VGG supply. The internal VGG regulator can be disabled to permit the user to supply an independent gate drive voltage. This flexibility allows a wide power conversion input voltage range of 2.2V to 18V. Internal under voltage lockout (UVLO) logic ensures VGG is good before allowing chip operation.
