Texas Instruments
UCD74111RVFT
UCD74111RVFT
Regular price
$2.18 USD
Regular price
Sale price
$2.18 USD
Unit price
per
Couldn't load pickup availability
UCD74111RVFT Texas Instruments - Yeehing Electronics
14 V, 15 A synchronous buck power stage with output current monitoring
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 5.732 |
| 100 — 249 | 4.673 |
| 250 — 999 | 3.673 |
| 1,000 + | 2.18 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Minimum Operating Temperature | -40 |
| Maximum Operating Temperature | 125 |
| Factory Pack Quantity | 250 |
| Package | Pins | LQFN-CLIP (RVF) | 40 |
For more information, please refer to datasheet
Documents
| UCD74111RVFT Datasheet |
More Information

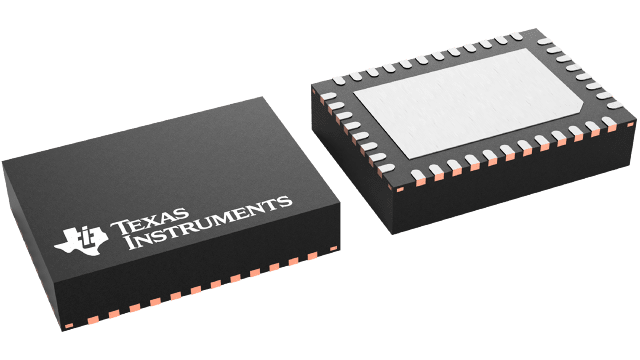

UCD74111 is a multi-chip module integrating a driver device and two NexFET power MOSFETs into a thermally enhanced compact, 5 mm × 7 mm, QFN package. A 15-A output current capability makes the device suitable for powering DSP and ASIC. The device is designed to complement digital or analog PWM controllers. The PWM input of the driver device is 3-state compatible. Two driver circuits provide high charge and discharge current for the high-side N-channel FET switch and the low-side N-channel FET synchronous rectifier in a synchronous buck converter.
