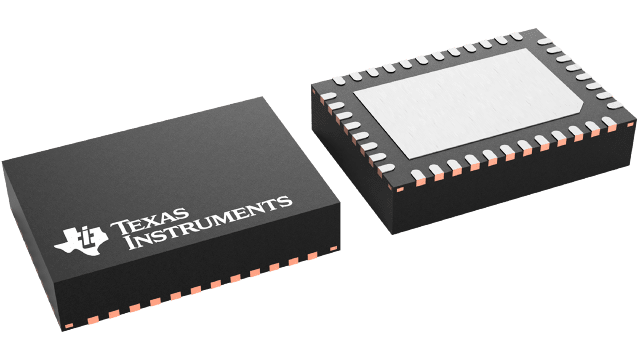

UCD74120RVFT Texas Instruments - Yeehing Electronics
14 V, 25 A synchronous buck power stage with output current monitoring
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 7.675 |
100 — 249 | 6.257 |
250 — 999 | 4.918 |
1,000 + | 2.92 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Switching Voltage Regulators |
RoHS | E |
Mounting Style | SMD/SMT |
Package / Case | LQFN-CLIP-40 |
Output Voltage | 6.8 V |
Output Current | 25 A |
Number of Outputs | 1 Output |
Topology | Buck |
Switching Frequency | 2 MHz |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Series | UCD74120 |
Packaging | Reel |
Input Voltage | 4.7 V to 14 V |
Operating Temperature Range | - 40 C to + 125 C |
Brand | Texas Instruments |
Moisture Sensitive | Yes |
Product Type | Switching Voltage Regulators |
Factory Pack Quantity | 250 |
Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
UCD74120RVFT Datasheet |
More Information
UCD74120 is a multi-chip module integrating a driver device and two NexFET power MOSFETs into a thermally enhanced compact, 5 mm × 7 mm, QFN package. A 25-A output current capability makes the device suitable for powering DSP and ASIC. The device is designed to complement digital or analog PWM controllers. The PWM input of the driver device is 3-state compatible. Two driver circuits provide high charge and discharge current for the high-side N-channel FET switch and the low-side N-channel FET synchronous rectifier in a synchronous buck converter.
