Texas Instruments
UCD8220QPWPRQ1
UCD8220QPWPRQ1
Regular price
$1.42 USD
Regular price
Sale price
$1.42 USD
Unit price
per
Couldn't load pickup availability

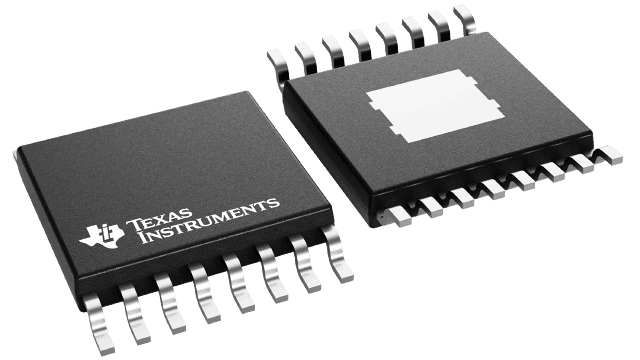

UCD8220QPWPRQ1 Texas Instruments - Yeehing Electronics
Automotive 4.5V to 15.5V digitally Assisted push-pull PWM controller
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.091 |
| 100 — 249 | 3.584 |
| 250 — 999 | 2.513 |
| 1,000 + | 1.42 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Controllers |
| RoHS | Y |
| Switching Frequency | 2000 kHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-16 |
| Qualification | AEC-Q100 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Series | UCD8220-Q1 |
| Type | PWM Power Supply Controllers |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Current | 20 mA |
| Operating Supply Voltage | 4.5 V to 15.5 V |
| Product Type | Switching Controllers |
| Factory Pack Quantity | 2000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.002212 oz |
For more information, please refer to datasheet
Documents
| UCD8220QPWPRQ1 Datasheet |
More Information
The UCD8220-Q1 analog pulse-width modulator (PWM) device is used in digitally managed power supplies using a microcontroller or the TMS320 DSP family.
