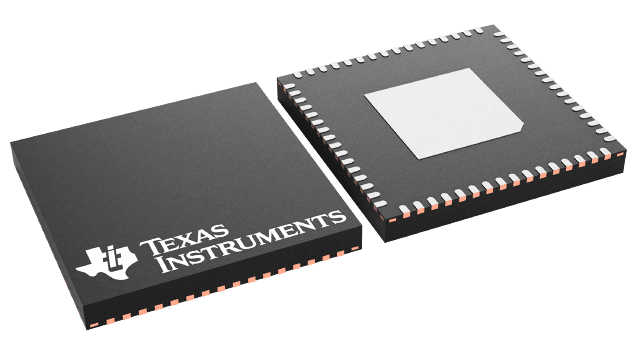

UCD90124RGCR Texas Instruments - Yeehing Electronics
12-Rail Sequencer and System Health Controller with Fan Control
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 11.934 |
| 100 — 249 | 10.424 |
| 250 — 999 | 8.037 |
| 1,000 + | 5.03 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Supervisory Circuits |
| RoHS | Y |
| Type | Voltage Supervisory |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-64 |
| Threshold Voltage | 3 V to 3.6 V |
| Number of Inputs Monitored | 12 Input |
| Manual Reset | No Manual Reset |
| Watchdog Timers | Watchdog |
| Supply Voltage - Max | 3.6 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Series | UCD90124 |
| Packaging | Reel |
| Height | 0.88 mm |
| Length | 9 mm |
| Operating Temperature Range | - 40 C to + 125 C |
| Width | 9 mm |
| Brand | Texas Instruments |
| Development Kit | UCD90SEQ64EVM-650 |
| Moisture Sensitive | Yes |
| Operating Supply Current | 50 mA |
| Operating Supply Voltage | 3.3 V |
| Product Type | Supervisory Circuits |
| Factory Pack Quantity | 2000 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 3 V |
| Unit Weight | 0.008021 oz |
For more information, please refer to datasheet
Documents
| UCD90124RGCR Datasheet |
More Information
The UCD90124 is a 12-rail PMBus/I2C addressable power-supply sequencer and system-health monitor. The device integrates a 12-bit ADC for monitoring up to 13 power-supply voltage, current, or temperature inputs. Twenty-six GPIO pins can be used for power supply enables, power-on reset signals, external interrupts, cascading, or other system functions. Twelve of these pins offer PWM functionality. Using these pins, the UCD90124 offers support for fan control, margining, and general-purpose PWM functions.
