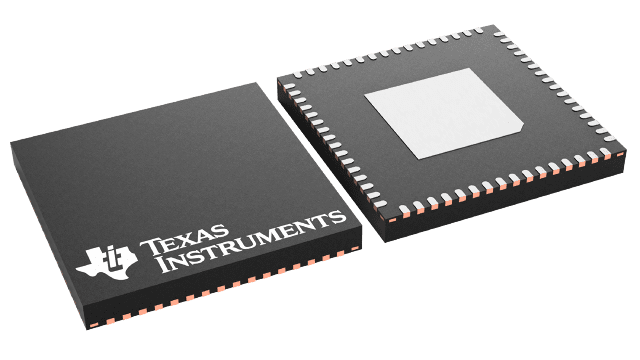

UCD90124RGCT Texas Instruments - Yeehing Electronics

12-Rail Sequencer and System Health Controller with Fan Control

Pricing (USD)

Quantity	Unit Price
1 — 99	14.009
100 — 249	12.237
250 — 999	9.435
1,000 +	5.91

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Supervisory Circuits
RoHS	Y
Type	Voltage Supervisory
Mounting Style	SMD/SMT
Package / Case	VQFN-64
Threshold Voltage	3 V to 3.6 V
Number of Inputs Monitored	12 Input
Manual Reset	No Manual Reset
Watchdog Timers	Watchdog
Supply Voltage - Max	3.6 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Series	UCD90124
Packaging	Reel
Height	0.88 mm
Length	9 mm
Operating Temperature Range	- 40 C to + 125 C
Width	9 mm
Brand	Texas Instruments
Development Kit	UCD90SEQ64EVM-650
Moisture Sensitive	Yes
Operating Supply Current	50 mA
Operating Supply Voltage	3.3 V
Product Type	Supervisory Circuits
Factory Pack Quantity	250
Subcategory	PMIC - Power Management ICs
Supply Voltage - Min	3 V
Unit Weight	0.008021 oz

For more information, please refer to datasheet

Documents

UCD90124RGCT Datasheet

More Information

The UCD90124 is a 12-rail PMBus/I2C addressable power-supply sequencer and system-health monitor. The device integrates a 12-bit ADC for monitoring up to 13 power-supply voltage, current, or temperature inputs. Twenty-six GPIO pins can be used for power supply enables, power-on reset signals, external interrupts, cascading, or other system functions. Twelve of these pins offer PWM functionality. Using these pins, the UCD90124 offers support for fan control, margining, and general-purpose PWM functions.
