Texas Instruments

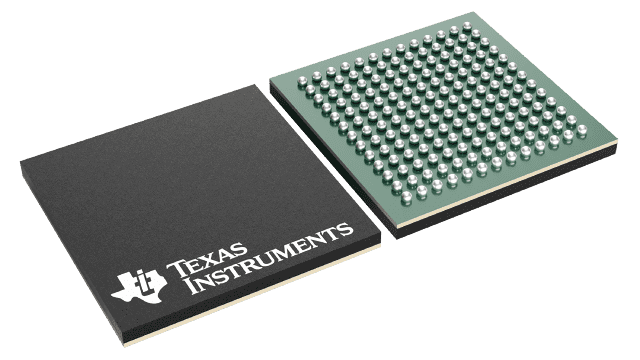

UCD90320ZWST
UCD90320ZWST
Regular price
$38.40 USD
Regular price
Sale price
$38.40 USD
Unit price
per
Couldn't load pickup availability
UCD90320ZWST Texas Instruments - Yeehing Electronics
32-Rail PMBus Power Sequencer and System Manager
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 22.749 |
| 100 — 249 | 19.871 |
| 250 — 999 | 15.321 |
| 1,000 + | 38.40 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Supervisory Circuits |
| RoHS | Y |
| Type | Voltage Sequencers |
| Mounting Style | SMD/SMT |
| Package / Case | NFBGA-169 |
| Threshold Voltage | 3 V |
| Number of Inputs Monitored | 32 Input |
| Output Type | Active Low, Open Drain |
| Manual Reset | Manual Reset |
| Watchdog Timers | Watchdog |
| Battery Backup Switching | No Backup |
| Reset Delay Time | Programmable |
| Supply Voltage - Max | 3.63 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | UCD90320 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 85 C |
| Brand | Texas Instruments |
| Chip Enable Signals | No Chip Enable |
| Development Kit | UCD90320EVM-783 |
| Moisture Sensitive | Yes |
| Operating Supply Current | 31.4 mA |
| Power Fail Detection | No |
| Product Type | Supervisory Circuits |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 3.15 V |
| Unit Weight | 0.023171 oz |
For more information, please refer to datasheet
Documents
| UCD90320ZWST Datasheet |
More Information
The UCD90320 device is a 32-rail PMBus™ addressable power sequencer and system manager in a compact 0.8-mm pitch BGA package.
