Texas Instruments
UCD9090QRGZRQ1
UCD9090QRGZRQ1
Regular price
$2.72 USD
Regular price
Sale price
$2.72 USD
Unit price
per
Couldn't load pickup availability
UCD9090QRGZRQ1 Texas Instruments - Yeehing Electronics
Automotive 10-Channel Sequencer and System Health Monitor
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 7.154 |
| 100 — 249 | 5.832 |
| 250 — 999 | 4.584 |
| 1,000 + | 2.72 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Supervisory Circuits |
| Mounting Style | SMD/SMT |

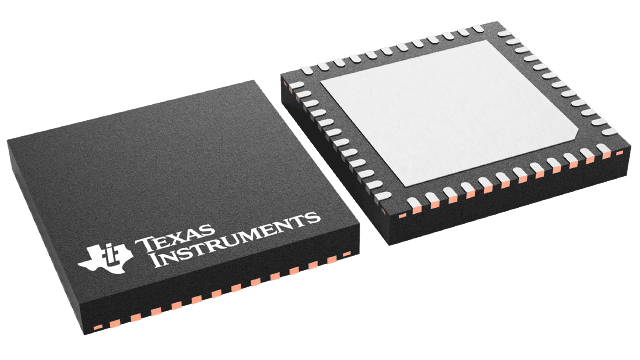

| Package / Case | VQFN-48 |
| Number of Inputs Monitored | 11 Input |
| Reset Delay Time | Programmable |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Series | UCD9090-Q1 |
| Qualification | AEC-Q100 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Current | 50 mA |
| Product Type | Supervisory Circuits |
| Factory Pack Quantity | 2500 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.004938 oz |
For more information, please refer to datasheet
Documents
| UCD9090QRGZRQ1 Datasheet |
More Information
The UCD9090-Q1 is a 10-rail PMBus and I2C addressable power-supply sequencer and monitor. The device integrates a 12-bit ADC for monitoring up to 10 power-supply voltage inputs. Twenty-three GPIO pins can be used for power supply enables, power-on reset signals, external interrupts, cascading, or other system functions. Ten of these pins offer PWM functionality. Using these pins, the UCD9090-Q1 offers support for margining, and general-purpose PWM functions.
