Texas Instruments
VCA5807PZP
VCA5807PZP
Regular price
$22.77 USD
Regular price
Sale price
$22.77 USD
Unit price
per
Couldn't load pickup availability

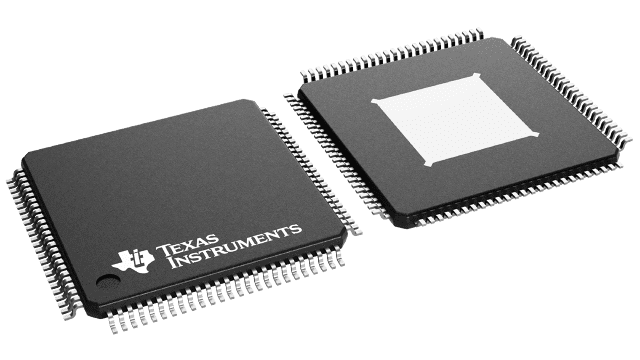

VCA5807PZP Texas Instruments - Yeehing Electronics
Fully Integrated, 8-channel, Voltage Controlled Amplifier w/ Passive CW Mixer
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 49.763 |
| 100 — 249 | 44.234 |
| 250 — 999 | 36.363 |
| 1,000 + | 22.77 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Special Purpose Amplifiers |
| RoHS | Y |
| Series | VCA5807 |
| Amplifier Type | VGA |
| Number of Channels | 8 Channel |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 3.15 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | HTQFP-100 |
| Packaging | Tray |
| Features | PGA, Shutdown |
| Brand | Texas Instruments |
| Development Kit | VCA5807EVM |
| en - Input Voltage Noise Density | 0.75 nV/sqrt Hz |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 3.15 V to 5.5 V |
| Product Type | Special Purpose Amplifiers |
| Factory Pack Quantity | 90 |
| Subcategory | Amplifier ICs |
| Unit Weight | 0.017990 oz |
For more information, please refer to datasheet
Documents
| VCA5807PZP Datasheet |
More Information
The VCA5807 is an integrated Voltage Controlled Amplifier (VCA) specifically designed for ultrasound systems in which high performance and small size are required. The VCA5807 integrates a complete time-gain-control (TGC) imaging path and a continuous wave Doppler (CWD) path. It also enables users to select one of various power/noise combinations to optimize system performance. Therefore, the VCA5807 is a suitable ultrasound analog front end solution not only for high-end systems, but also for portable systems.
