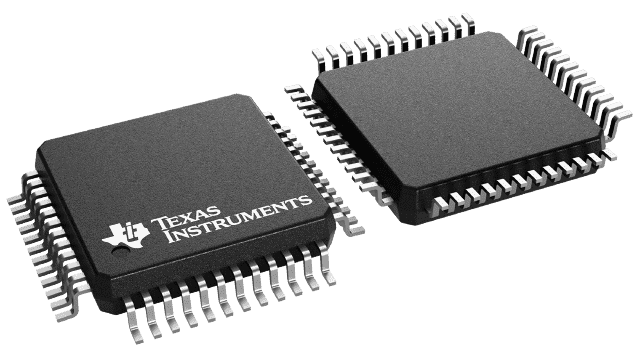

VSP2262Y Texas Instruments - Yeehing Electronics

12-bit, 20 MSPS 1-Channel AFE for CCD Sensors

Pricing (USD)

Quantity	Unit Price
1 — 99	27.951
100 — 249	24.415
250 — 999	18.825
1,000 +	11.79

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Analog Front End - AFE
RoHS	Y
Series	VSP2262
Type	CCD AFE
Resolution	12 bit
Sampling Rate	20 MS/s
Number of Channels	1 Channel
Minimum Operating Temperature	- 25 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	LQFP-48
Packaging	Tray
Height	1.4 mm
Length	7 mm
Number of Converters	1 Converter
Width	7 mm
Brand	Texas Instruments
Operating Supply Voltage	3 V, 3 V
Product Type	Analog Front End - AFE
Factory Pack Quantity	250
Subcategory	Data Converter ICs
Unit Weight	0.006349 oz

For more information, please refer to datasheet

Documents

VSP2262Y Datasheet

More Information

The VSP2262 is a complete mixed-signal processing IC for digital cameras, providing signal conditioning and Analog-to-Digital (A/D) conversion for the output of a CCD array. The primary CCD channel provides Correlated Double Sampling (CDS) to extract video information from the pixels, x966dB to +42dB gain range with digital control for varying illumination conditions, and black level clamping for an accurate black level reference. Input signal clamping and offset correction of the input CDS are also performed. The stable gain control is linear in dB. Additionally, the black level is quickly recovered after gain change. The VSP2262Y is available in an LQFP-48 package and operates from a single +3V/+3.3V supply.
