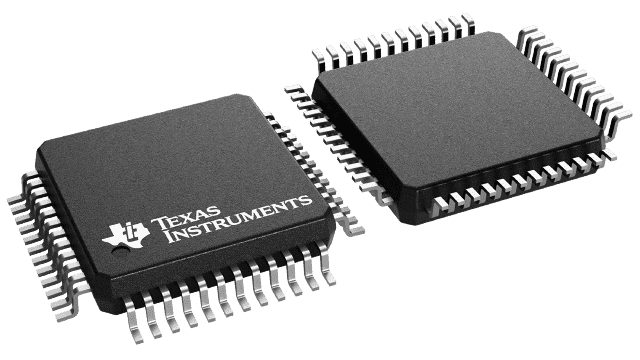

VSP2262Y/2K Texas Instruments - Yeehing Electronics
12-bit, 20 MSPS 1-Channel AFE for CCD Sensors
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 24.631 |
100 — 249 | 21.515 |
250 — 999 | 16.589 |
1,000 + | 11.87 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Analog Front End - AFE |
RoHS | Y |
Series | VSP2262 |
Type | CCD AFE |
Resolution | 12 bit |
Sampling Rate | 20 MS/s |
Number of Channels | 1 Channel |
Minimum Operating Temperature | - 25 C |
Maximum Operating Temperature | + 85 C |
Mounting Style | SMD/SMT |
Package / Case | LQFP-48 |
Packaging | Reel |
Height | 1.4 mm |
Length | 7 mm |
Number of Converters | 1 Converter |
Width | 7 mm |
Brand | Texas Instruments |
Operating Supply Voltage | 3 V, 3 V |
Product Type | Analog Front End - AFE |
Factory Pack Quantity | 2000 |
Subcategory | Data Converter ICs |
Unit Weight | 0.006349 oz |
For more information, please refer to datasheet
Documents
VSP2262Y/2K Datasheet |
More Information
The VSP2262 is a complete mixed-signal processing IC for digital cameras, providing signal conditioning and Analog-to-Digital (A/D) conversion for the output of a CCD array. The primary CCD channel provides Correlated Double Sampling (CDS) to extract video information from the pixels, x966dB to +42dB gain range with digital control for varying illumination conditions, and black level clamping for an accurate black level reference. Input signal clamping and offset correction of the input CDS are also performed. The stable gain control is linear in dB. Additionally, the black level is quickly recovered after gain change. The VSP2262Y is available in an LQFP-48 package and operates from a single +3V/+3.3V supply.
